| Place of Origin: | china |
|---|---|
| Brand Name: | SIMO BLOWER |
| Certification: | CE, ISO |
| Model Number: | SIMO Blower 5-12 |
| Minimum Order Quantity: | 1 |
| Pressure Range: | 220~3157Pa | Air Flow Range: | 844~221730m3/h |
|---|---|---|---|
| Impeller Diameter: | 800~1600mm | Speed: | 1450~2900rpm |
| High Light: | Centrifugal Air Blower 90kw,Industrial Centrifugal Air Blower Fan,5000 cfm Centrifugal Air Blower |
||

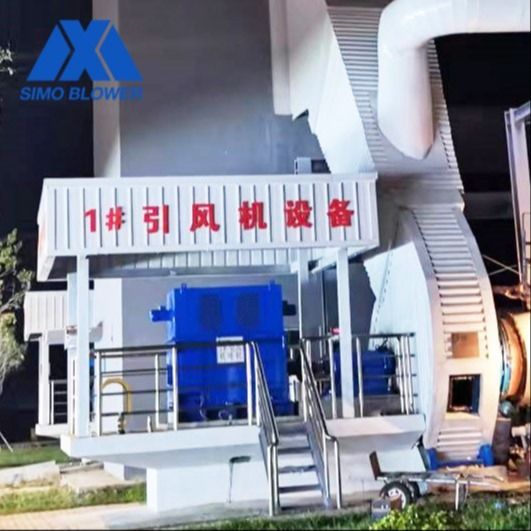

| Industrial boiler 5000 cfm centrifugal air blower 90kw | |||
| Performance | Pressure range | 220~3157 | Pa |
| Air flow range | 844~221730 | m3/h | |
| Impeller diameter | 800~1600 | mm | |
| Speed | 1450~2900 | rpm | |
| Material | industrial boiler centrifugal fan case | Q235, Q345, stainless steel | Design as special |
| industrial boiler centrifugal fan shaft | 45# steel, Q304, SS304,SS316L | ||
| industrial boiler centrifugal fan impeller | Q304, 12Cr1Mov,15Crmov, 15MnV | ||
| Medium | 10---120℃ | Dustiness<80 g/m3 | incombustible |
| Motor | Siemens, ABB, WN, SIMO, LA | IP 54,55,56 | 3 phase |
| Optional components |
System base frame, Protective screening, Silencer, Inlet & Outlet pipeline compensator, Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument, Lube system, Overhead lube tank. |
||
Industrial centrifugal fan have widely used in industrial systems,such as
Building materials:Cement mill, Glass product,Brick klin,mineral waste esidue
Metallurgy: coke blast-furnace,steel-making,electrolytic aluminium,
Power Generation: biomass energy,coal furnace ,waste incineration
We are strict with every step about the industrial centrifugal fan and axial fan.
Packing detail:Industrial boiler 5000 cfm centrifugal air blower 90kw is packed by wooden case and steel pallet
Delivery detail: 35 days after receive your payment
Xinxiang SIMO BLOWER Limited Company which was founded in 1995, mainly designs and manufactures Centrifugal fans and Axial flow fans which are applied to industrial systems, which is the senior member of China General Machinery Industry Association. SIMO BLOWER is one of the main large fan manufacturers in Central China, whichcovers an area of 100,000 square metres, owns more than 200 employees and the production capacity of 15000 sets one year.
There is an advanced Air flow Test Laboratory in our company. We master mature fan designing, testing, manufacturing technology, and can design and manufacture multipurpose fans according to users' requirements. So, we are able to meet users' complex and professional applications. SIMO BLOWER's products have been widely used in thousands of customers' industrial systems, such as Coal-fired power, Metallurgy, Papermaking, Cement and Glass production, Chemical industry, Material handling, Sewage treatment, Waste incineration, Subway ventilation, Industrial boiler and Dust removal systems etc.
At present, SIMO BLOWER' s customers distribute in these countries:
EUROPE: British, Denmark, Italy, Romania, Russia, Ukraine.
AMERICA: USA, Mexico, Peru.
ASIA: China, India, Indonesia, Israel, Korea, Malaysia, Pakistan, Philippines, Saudi Arabia, Thailand, UAE, Vietnam. Bangladesh
