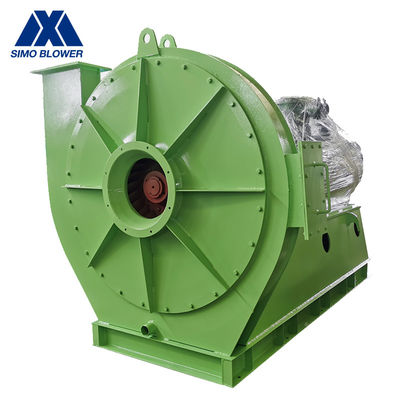

Metallurgy Carbon Steel Single Inlet Centrifugal Fan High Temperature

Metallurgy Carbon Steel Single Inlet Centrifugal Fan High Temperature
Brand Name
SIMO
Product Model
SIMO Blower 9-03
Certificate
CE, ISO9001:2008,TUV
Country Of Origin
Henan China
MOQ
1 Set
Unit Price
Negotiable
Payment Method
T/T, L/C, Payment Term Is Negotiable
Supply Capacity
500 Sets Per Month
Product Details
Highlight:

Carbon Steel Single Inlet Centrifugal Fan

,

Metallurgy Centrifugal Fan

,

Metallurgy Carbon Steel Centrifugal Fan
Type: Centrifugal Fan
Bearing Cooling: Air Cooling Or Circulating Water Cooling
Advantage: Convenient Installation
Material: Carbon Steel/Alloy Steel/Stainless Steel
Voltage: 380V/415V/440V/660V/6KV/10KV
Power: Customized And Specifized
Product Description
Detailed Specifications And Features

Carbon Steel Single Inlet Metallurgy High Temperature Centrifugal Fan

Introduction



9-03 series fan-type iron furnace special high-pressure centrifugal fan, is suitable for IL/h, 2L/h, 3L/h, 3L/h, 7L/h melting rate of iron furnace blast performance requirements.

The parts are closely matched and have good sealing performance to ensure the output pressure will not be reduced.



Technical data



series model Rotation Speed
(r/min)		 Total Pressure
(Pa)		 Air Capacity
(m³/h)		 Power
(kW)
9-03 4D 2900 2285～2452 3297～6594 5.5～7.5
4.5D 2900 2893～3060 4695～9389 11～15
5D 2900 3570～3854 6440～12880 15～22
5.6D 2900 4482～4805 9048～18095 30～45
6.3D 1450 1422～1500 6441～12882 7.5～11
7.1D 1450 1804～1942 9220～18439 11～18.5
8D 1450 2285～2462 13189～26378 18.5～30
9D 1450 2893～3099 18779～37558 37～55
10D 1450 3570～3854 25760～42933 55～90
11.2D 960～1450 1961～4835 23961～72381 30～160
12.5D 730～960 1412～2638 25329～66620 22～90
14D 730～960 1775～3305 35586～93596 45～160
16D 730～960 2314～4295 53120～139712 75～280


FAQ



1,Q: What’s the MOQ of your company?

  A: The MOQ is 1set.

2,Q: How long is the delivery time?

A :        A:5-35 days.

3,Q : What’s your payment terms?

     A : T/T, L/C, or Negotiable.

4,Q: What’s your warranty?
     A: 1 year.
5,Q: Is your company factory or trade company?

     A: We have our own factory, our type is factory +trade.



Application



Centrifugal fan is applied in industrial boiler, (centrifugal fan can be applied in industrial boiler,) it also can be applied in industrial kilns, blast furnace, Industrial waste heat recovery device, Electrolytic aluminium production line air purification system and other industrial work environment.

Metallurgy Carbon Steel Single Inlet Centrifugal Fan High Temperature 0

Metallurgy Carbon Steel Single Inlet Centrifugal Fan High Temperature 1

Metallurgy Carbon Steel Single Inlet Centrifugal Fan High Temperature 2
