High Temperature Centrifugal Fan
>
HG785 Alloyed Steel 8117m3/H High Temperature Exhaust Fan Centrifugal Blower

HG785 Alloyed Steel 8117m3/H High Temperature Exhaust Fan Centrifugal Blower

Product Details:
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 9-03
Detail Information
Place of Origin:
Henan China
Brand Name:
SIMO
Certification:
CE, ISO9001:2008,TUV
Model Number:
SIMO Blower 9-03
Feature:
High Performance
Application:
Industrial Ventilation
Voltage:
380V/415V/440V/660V/6KV/10KV
Warranty:
1 Year
Bearing Cooling:
Air Cooling Or Circulating Water Cooling
Impeller Support:
SWSI (Single Width, Single Inlet), Impeller Overhung
High Light:

High Light

High Light:

8117m3/H High Temperature Exhaust Fan

,

2950r/min High Temperature Exhaust Fan

,

8117m3/H high temperature centrifugal blower

Trading Information
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Export Wooden Case Packing, Steel pallet Packing
Delivery Time:
15-35 Days
Payment Terms:
T/T, L/C, Payment Term Is Negotiable
Supply Ability:
500 Sets Per Month
Product Description

HG785 Alloyed Steel High Temperature Exhaust Centrifugal Fan



Introduction



9-03 series fan-type iron furnace special high-pressure centrifugal fan, is suitable for IL/h, 2L/h, 3L/h, 3L/h, 7L/h melting rate of iron furnace blast performance requirements.

The fan can also be used as the blast for various furnace forging furnaces.

It is also suitable for conveying air and non-corrosive, non-self-igniting, non-viscous materials or light powder/debris/short fiber materials.

It is suitable for forced ventilation, forced cooling, blasting of smelting furnaces and foundry furnaces, pressurization or decompression sealing of industrial equipment.



Product features



1. It can output high pressure and is suitable for any industrial occasion where high pressure & normal temperature gas is required.

2. The energy transfer efficiency is high, the energy of the motor is directly applied to the impeller, and there is no energy consumption during the transfer.

3. The motor uses high-efficiency and energy-saving motors from China's leading motor manufacturers (and can also install branded motors required by users), with reliable quality and lower energy consumption.

4. It is made of high quality carbon steel, stainless steel or other metal materials are available upon request.

5. The impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.

6.After the completion of production, after running test and vibration value detection, the operation is reliable.



Technical specifications



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
9-03 8C 2950 1668017631 30198117 3755
9C 2950 2134822314 432611632 75110



FAQ



1,Q: What’s the MOQ of your company?

A: The MOQ is 1set.

2,Q: How long is the delivery time?

A :     A:5-35 days.

3,Q : What’s your payment terms?

   A : T/T, L/C, or Negotiable.

4,Q: What’s your warranty?
   A: 1 year.
5,Q: Is your company factory or trade company?

   A: We have our own factory, our type is factory +trade.

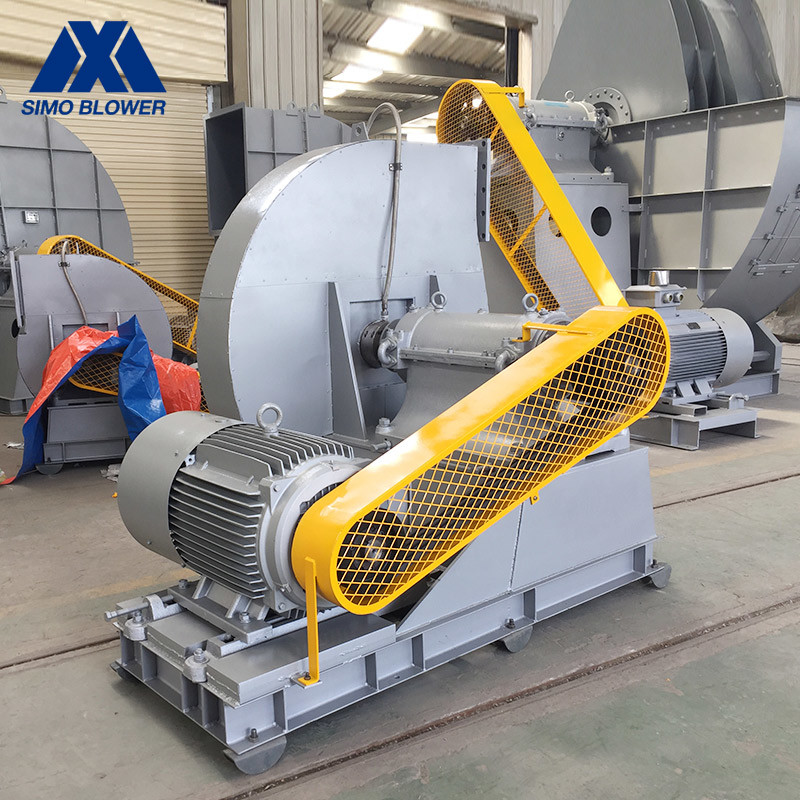

HG785 Alloyed Steel 8117m3/H High Temperature Exhaust Fan Centrifugal Blower 0

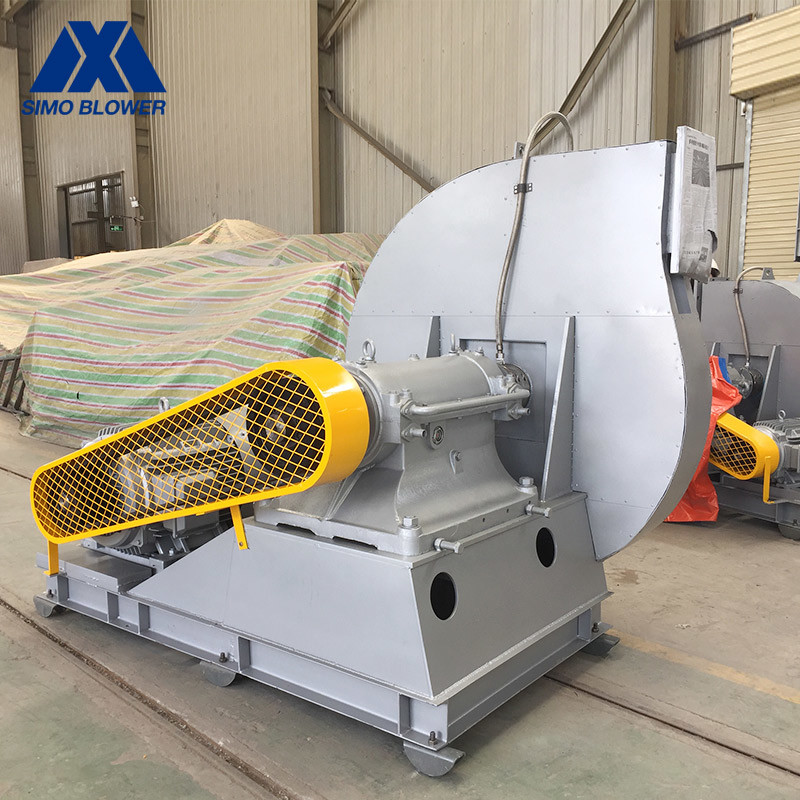

HG785 Alloyed Steel 8117m3/H High Temperature Exhaust Fan Centrifugal Blower 1
