| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 6-11 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Impeller Test: | Ultrasonic Flaw Detection | System Type: | Single Inlet, Overhang Type |
|---|---|---|---|
| Lubrication: | Oil Bath Lubrication | Power Source: | Three Phase AC Motor |
| Impeller Support: | SWSI (Single Width, Single Inlet), Impeller Overhung | ||
| High Light: | FD High Temperature Centrifugal Fan,Medium Pressure High Temperature Centrifugal Fan,fd high temp blower |
||

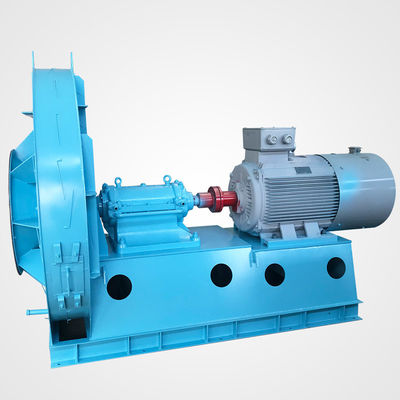

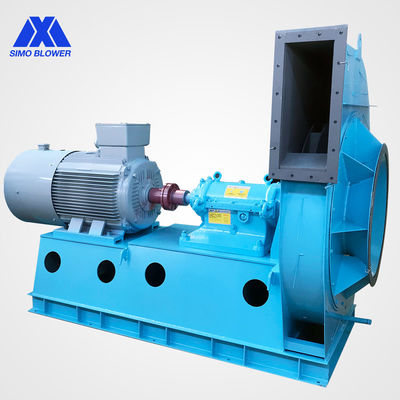

Medium Pressure Aluminium Alloyed FD High Temperature Centrifugal Fan
Introduction
This series high-pressure heavy-duty centrifugal fan, suitable for conveying non-flammable gas and granule/powder/chip/fiber material at normal temperature or high temperature.
The output gas flow is slightly larger than the 6-11 series heavy-duty centrifugal fan, the air volume is large, and the pressure is high, smooth operation, high reliability and long life.
Product features
1. For dusty gas, we can meet all kinds of working conditions from small amount of dust to large amount of dust. After special treatment, the hardness of blade surface can reach HRC60~70, which can extend the life of the impeller by more than 3 times.
2. The moderate bonding between the components is tight, and the sealing performance is good, ensuring that the output pressure will not be reduced.
3. After annealed treatment, the internal stress of the structure generated during welding can be completely eliminated to ensure that the impeller will not creepage and crack.
4. Ultrasonic flaw detection on the welding seam and main spindle of the impeller to ensure that there are no welding defects or material defects and ensure the strength.
5. The impeller is subjected to a high standard of dynamic balancing adjusting to ensure stable operation of the fan.
6. Test assembly after production is completed to ensure that there is no interference between the components.
7. Provide on-site arrangement and guidance services.
Technical specifications
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 6-11 | 14D | 1450 | 5435～7086 | 22889～41542 | 90～110 |
| 15D | 1450 | 6240～8134 | 28153～51095 | 110～160 | |
| 16D | 1450 | 7099～9255 | 34167～62011 | 160～220 | |
| 17D | 1450 | 8014～10448 | 40892～74379 | 220～280 | |
| 18D | 1450 | 8986～11713 | 48648～88292 | 280～400 | |
| 19D | 1450 | 10012～13051 | 57215～103840 | 400～500 | |
| 20D | 1450 | 11093～14461 | 66733～121114 | 450～630 |
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
