Q235 Single Suction Centrifugal Flow Fan Energy Saving Heat Dissipation
Centrifugal Flow Fan Q235 Steel
,Centrifugal Flow Fan Energy Saving
,Centrifugal Flow Fan Single Suction
Q235 Single Suction Centrifugal Flow Fan Energy Saving Heat Dissipation
Introduction

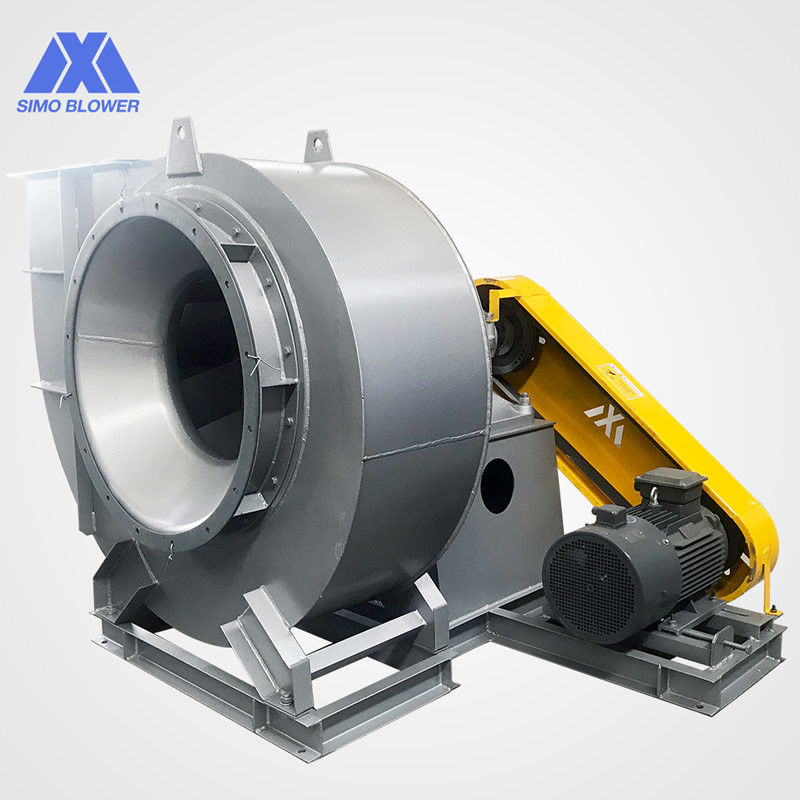

The 4-14 series centrifugal fan is suitable for indoor ventilation in general factories and large buildings.
The fan is not appended bearing support, impeller and motor drive directly. Fans has the characteristics of high efficiency,low noise and low revolution.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 4-14 | 8C | 1450 | 2177～1481 | 16985～30134 | 18.5 |
| 9C | 960 ~ 1450 | 824 ~ 2756 | 16011～42906 | 11 ~ 30 | |
| 10C | 730 ~ 1450 | 588 ~ 3403 | 16701 ～58856 | 7.5 ~ 55 | |
| 11.2C | 730 ~ 1450 | 736 ~ 4276 | 23464 ～82688 | 11 ~ 90 | |
| 12.5C | 730 ~ 1450 | 912 ~ 5325 | 32619 ～114952 | 22 ~ 160 | |
| 14C | 730 ~ 1450 | 1147 ~ 6678 | 45827～161499 | 37 ~ 315 | |
| 16C | 580 ~ 960 | 951 ~ 3825 | 54351～159606 | 45 ~ 160 |
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
Application
Centrifugal fan is applied in industrial boiler, (centrifugal fan can be applied in industrial boiler,) it also can be applied in industrial kilns, blast furnace, Industrial waste heat recovery device, Electrolytic aluminium production line air purification system and other industrial work environment.
-
-
