| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 9-08 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Applications: | Industrial Ventilation | Feature: | High Performance |
|---|---|---|---|
| Current Type: | AC | Operating Temperature: | -20 ~ 450 ℃ |
| Warranty: | 1 Year | Bearing Cooling: | Air Cooling Or Circulating Water Cooling |
| High Light: | Coupling Driven High Temperature Centrifugal Fan,Coupling Driven Centrifugal Fan,Centrifugal Fan Oven Wall Cooling |
||
Introduction

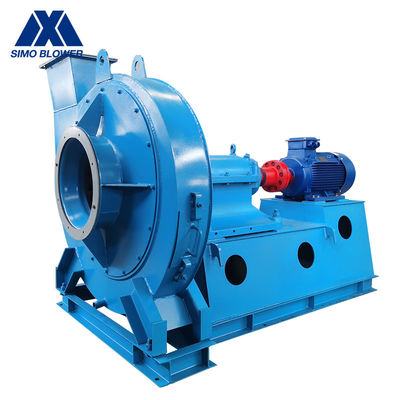

The 9-08 series high pressure fan is generally used for forging furnace and high pressure forced ventilation, and can be widely used to transport materials, transport air and non-corrosive, non-self-igniting, non-viscous substances gas.
Each wheel is subjected to dynamic balance test. The balancing level is kept at G4.0 (Typical products are balanced to G6.3 only). Durable, stable and quietness are guaranteed.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 9-08 | 7.1D | 2900 | 10635～12427 | 12292～19360 | 75～110 |
| 8D | 1450～2900 | 3249～15955 | 8792～27696 | 18.5～200 | |
| 9D | 1450 | 4181～4869 | 12518～19717 | 30～45 | |
| 10D | 1450 | 5065～6143 | 17172～30052 | 55～75 | |
| 11.2D | 960～1450 | 3031～7747 | 15973～42221 | 30～132 | |
| 12.5D | 960～1450 | 3450～9713 | 22206～58695 | 45～250 | |
| 14D | 960～1450 | 4341～12285 | 31197～82463 | 75～400 | |
| 16D | 960～1450 | 5696～16250 | 46569～123090 | 185～850 |
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
Application
Centrifugal fan is applied in industrial boiler, (centrifugal fan can be applied in industrial boiler,) it also can be applied in industrial kilns, blast furnace, Industrial waste heat recovery device, Electrolytic aluminium production line air purification system and other industrial work environment.
