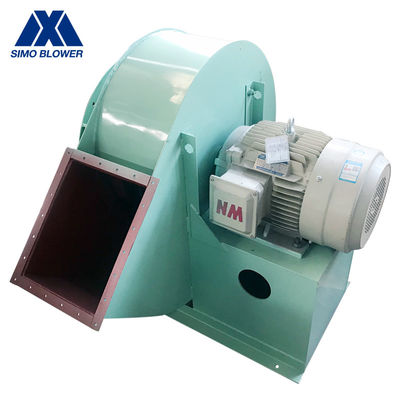

Coupling Driving Long Lifetime Lime Kiln High Temperature Centrifugal Fan

Coupling Driving Long Lifetime Lime Kiln High Temperature Centrifugal Fan

Product Details:
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 9-08
Detail Information
Place of Origin:
Henan China
Brand Name:
SIMO
Certification:
CE, ISO9001:2008,TUV
Model Number:
SIMO Blower 9-08
Application:
Industrial Ventilation
Category:
Blower
After-sales Service Provided:
Field Installation, Commissioning And Training
Noise:
Optional
Impeller Support:
SWSI (Single Width, Single Inlet), Impeller Overhung
Medium:
Clean Air/Dusty Air
High Light:

High Light

High Light:

Lime Kiln High Temperature Centrifugal Fan

,

Coupling Driving Centrifugal Fan

,

SWSI High Temperature Centrifugal Fan

Trading Information
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Export Wooden Case Packing, Steel pallet Packing
Delivery Time:
15-35 Days
Payment Terms:
T/T, L/C, Payment Term Is Negotiable
Supply Ability:
500 Sets Per Month
Product Description

Coupling Driving Long Lifetime Lime Kiln High Temperature Centrifugal Fan



Introduction Of Centrifugal Fan



The 9-08 series high pressure fan is generally used for forging furnace and high pressure forced ventilation, and can be widely used to transport materials, transport air and non-corrosive, non-self-igniting, non-viscous substances gas.

It is made of high quality carbon steel, stainless steel or other metal materials are available upon request.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
9-08 4A 2900 38523407 21983215 5.5
4.5A 2900 42564910 31304792 7.511
5A 2900 51806035 42936762 1518.5
5.6A 2900 35277610 60329500 2230
6.3A 2900 83109698 858813525 4555



Application



1. Install centrifugal fans in mines and tunnels to re-enter fresh air and exhaust dirty air to ensure air circulation in the mines and tunnels.Centrifugal fans can help dust discharge, ensure air transparency in mines and tunnels, and ensure the health of workers in mines and tunnels.

2. A centrifugal fan is installed in the cooling tower, which not only plays the role of ventilation and ensures the normal operation of the cooling tower, but also plays a positive role in improving the cooling effect of the cooling tower by the large flow wind generated by the centrifugal fan.

3. Main ventilator in coal mine is an important equipment to ensure normal ventilation in underground mine, which not only affects the production capacity of coal mine, but also is very important to the safety of mining industry.



Product Advantages



1. It is mainly used for blasting furnace blast and other forced air supply, and can also be used for tunnels to exhaust or supply air through hard pipes.

2.  Customized design according to customer's performance requirements, and optimized by CFD technology, the energy consumption is lower than similar models.

3.  The current collector and impeller front plate are processed by advanced spinning process and ensure precision.



FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.



2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.



3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
