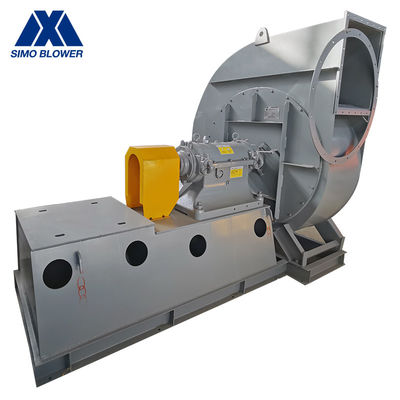

Stainless Steel V-Belt Driven Furnace High Temperature Centrifugal Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 9-11
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Mounting: Free Standing
After-sales Service Provided: Field Installation, Commissioning And Training Impeller: Dynamic Balanced
Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung Medium: Clean Air/Dusty Air
High Light:

Belt Furnace High Temperature Centrifugal Fan

,

V Belt Driven Furnace Centrifugal Fan

,

2900r/min High Temperature Centrifugal Fan

Stainless Steel V-Belt Driven Furnace High Temperature Centrifugal Fan



Introduction Of Centrifugal Fan



The 9-11 series high temperature centrifugal blower has a large flow rate and moderate pressure.

The fan can also be used in cement kiln decomposition process, steel smelting and other special occasions use of high temperature fan (use heat resistant & high strength material).

When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
9-11 4D 2900 22852452 32976594 5.57.5
4.5D 2900 28933060 46959389 1115
5D 2900 35703854 644012880 1522
5.6D 2900 44824805 904818095 3045
6.3D 1450 14221500 644112882 7.511
7.1D 1450 18041942 922018439 1118.5
8D 1450 22852462 1318926378 18.530
9D 1450 28933099 1877937558 3755
10D 1450 35703854 2576042933 5590
11.2D 9601450 19614835 2396172381 30160
12.5D 730960 14122638 2532966620 2290
14D 730960 17753305 3558693596 45160
16D 730960 23144295 53120139712 75280


Application



1. Install centrifugal fans in mines and tunnels to re-enter fresh air and exhaust dirty air to ensure air circulation in the mines and tunnels.Centrifugal fans can help dust discharge, ensure air transparency in mines and tunnels, and ensure the health of workers in mines and tunnels.

2. A centrifugal fan is installed in the cooling tower, which not only plays the role of ventilation and ensures the normal operation of the cooling tower, but also plays a positive role in improving the cooling effect of the cooling tower by the large flow wind generated by the centrifugal fan.

3. Main ventilator in coal mine is an important equipment to ensure normal ventilation in underground mine, which not only affects the production capacity of coal mine, but also is very important to the safety of mining industry.



Product Advantages



1.  It can output very high pressure and can work at higher medium temperature, suitable for any industrial occasion where high pressure & high temperature gas needs to be delivered.

2.  The energy transfer efficiency is high, the energy of the motor is directly applied to the impeller, and there is no energy consumption during the transfer.

3.  It is also suitable for conveying air and non-corrosive, non-self-igniting, non-viscous materials or light powder/debris/short fiber materials.



FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.



2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.



3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
