Hg785 Alloyed Steel Forward Lime Kiln Anti Fraying Power Plant Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 9-10
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Voltage: 380V/415V/440V/660V/6KV/10KV
Mounting: Free Standing Impeller: Dynamic Balanced
Lubrication: Oil Bath Lubrication Bearing Type: Rolling Bearing
High Light:

alloyed steel power plant fan

,

anti fraying power plant fan

,

lime kiln fan in power plant

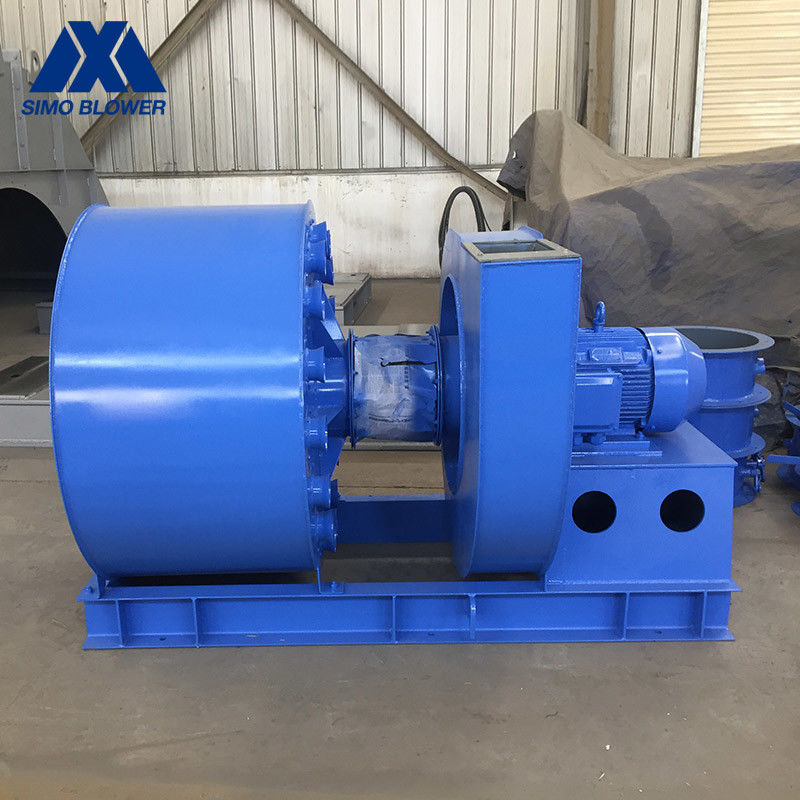

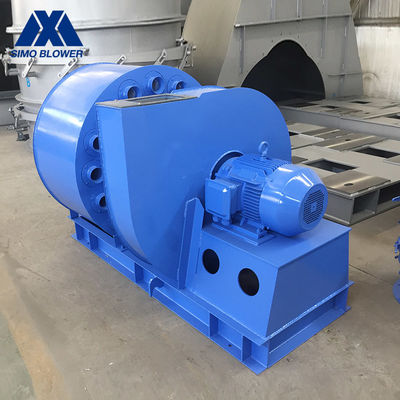

HG785 Alloyed Steel Forward Lime Kiln Antifraying Power Plant Fan



Introduction Of Centrifugal Fan



The 9-10 series high pressure fan is generally used for forging furnace and high pressure forced ventilation and widely used for material transportation.

It has the characteristics of high efficiency, low noise, flat performance curve and wide efficient area.

Industrial boilers of 5 ~ 35 tons/hour can be used, those with similar intake conditions and suitable performance can be used, but the maximum temperature shall not more than250°C.



Product Advantages



1. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.

2. It can not only reduce the pollution of the smoke on the environment, but also reduce the wear of the smoke on the fan, which is conducive to prolonging the life of the fan.

3.The fan is made of high quality carbon steel, and can also use stainless steel or other metal materials according to customer requirements.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
9-10 4A 2900 32533597 8241704 2.23
4.5A 2900 41124603 11742504 45.5
5A 2900 50805697 16103488 7.511
5.6A 2900 64007182 22624901 1115
6.3A 2900 81489149 32206978 18.530
7.1A 2900 1042611717 46109988 3755



FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.



2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.



3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.

Hg785 Alloyed Steel Forward Lime Kiln Anti Fraying Power Plant Fan 0

Hg785 Alloyed Steel Forward Lime Kiln Anti Fraying Power Plant Fan 1

Hg785 Alloyed Steel Forward Lime Kiln Anti Fraying Power Plant Fan 2
