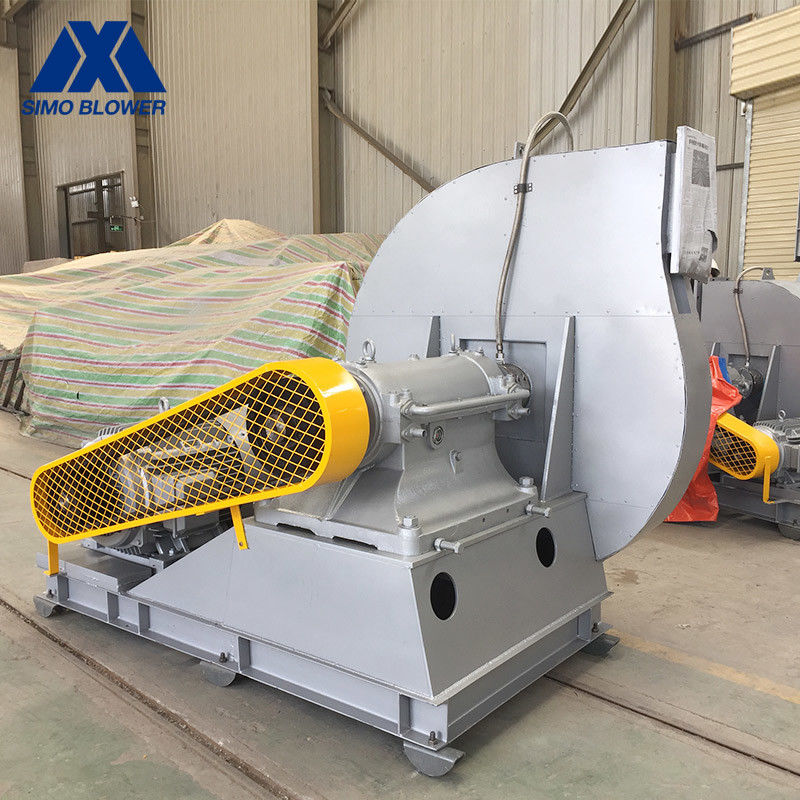

High Pressure V Belt Driving Blast Furnace Power Plant Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 9-03
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Voltage: 380V/415V/440V/660V/6KV/10KV
Material: Carbon Steel/Alloy Steel/Stainless Steel Blade: Forward / Backward/Backward Curved
Lubrication: Oil Bath Lubrication Bearing Type: Rolling Bearing
High Light:

high pressure power plant fan

,

v belt driving power plant fan

,

blast furnace fan in power plant

High Pressure V-Belt Driving Blast Furnace Power Plant Fan



Introduction Of Centrifugal Fan



The 9-10 series high pressure fan is generally used for forging furnace and high pressure forced ventilation and widely used for material transportation.

The fan system running at normal temperature with an impeller diameter of less than 1400 mm does not require additional configuration of bearing cooling device, which reduces the user's investment and maintenance workload.



Product Advantages



1. The fan is made of high quality carbon steel, and can also use stainless steel or other metal materials according to customer requirements.

2. Running test and vibration value detection after the production is completed, the fan operation is reliable.

3. It is a high-efficiency energy-saving product jointly designed by the national fan industry and organized by the national wind power industry and the Ministry of Machinery Industry.

Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
9-10 8C 14502900 323115034 329714287 7.5110
9C 1450 41014597 469510717 1522
10C 1450 49585840 644015455 3037
11.2C 9601450 27057364 599021713 1575
12.5C 9601450 39759229 832730186 22110
14C 9601450 424911668 1169942409 37220
16C 9601450 557515425 1746363305 75315


FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.



2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.



3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.



High Pressure V Belt Driving Blast Furnace Power Plant Fan 0

High Pressure V Belt Driving Blast Furnace Power Plant Fan 1

High Pressure V Belt Driving Blast Furnace Power Plant Fan 2

High Pressure V Belt Driving Blast Furnace Power Plant Fan 3

High Pressure V Belt Driving Blast Furnace Power Plant Fan 4
