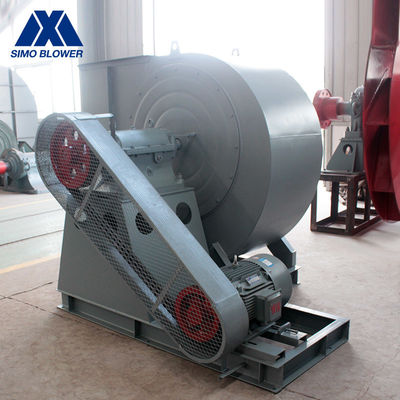

Aluminium Alloyed Foundry High Temperature Centrifugal Fan Single Inlet

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 7-07
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Feature: High Performance Main Shaft: High-strength Carbon Structural Steel
Mounting: Free Standing System Type: Single Inlet, Overhang Type
Type: Centrifugal Fan Medium: Clean Air/Dusty Air
High Light:

Single Inlet High Temperature Centrifugal Fan

,

Foundry High Temperature Centrifugal Fan

,

Aluminium Alloyed Foundry High Temp Blower

Single Inlet Aluminium Alloyed Foundry High Temperature Centrifugal Fan



Introduction



The 7-07 series high-pressure centrifugal fan has a high output pressure, can transport normal temperature or high temperature various gases and various forms of materials, and also can be used in harsh working environments.

For dusty gases, we are able to satisfy a wide range of conditions from a small amount of dust to a very high dust content, after special treatment, the surface hardness of the blade can reach HRC60~70, which can extend the life of the impeller more than 3 times.



Technical data



PRODUCT PARAMETERS
Centrifugal Fan Application
Temperature Normal temperature air, Hot air
Air composition Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials
Centrifugal Fan Performance
Impeller diameter 500~1000 mm
Speed of mainshaft

1470~3070

rpm
Pressure range 2188~4109 Pa
Flow range 4486~36478 m3/h
Centrifugal Fan Structure
Blade Backward
Impeller support SWSI (Single Width, Single Inlet), Impeller overhung.
Drivetrain V-Belt Can assign
Lubrication Oil bath lubrication
Bearing cooling Air cooling, Water cooling, Oil cooling
Centrifugal Fan System
Configuration
Motor ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand…



Can assign

Impeller Q235, Q345, SS304, SS316, HG785, DB685...

Casing, Air inlet cone,

Air inlet damper

Q235, Q345, SS304, SS316, HG785, DB685...
Main shaft 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel...
Bearing FAG, SKF, NSK, ZWZ…
Centrifugal Fan Optional
Components
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator,
Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc


Advantages and Features



1. Metallurgy Smelting Furnace Single Inlet Q235 High Temperature Centrifugal Fan can output higher outlet pressure and provide more gas flow with lower noise. Ability to work stably at higher media temperatures.

2.The parts are tightly matched and the sealing performance is good, ensuring that the output pressure will not decrease.

3. The impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.



Aluminium Alloyed Foundry High Temperature Centrifugal Fan Single Inlet 0

Aluminium Alloyed Foundry High Temperature Centrifugal Fan Single Inlet 1

Aluminium Alloyed Foundry High Temperature Centrifugal Fan Single Inlet 2
