Q235 Single Suction Steam Boiler High Temperature Centrifugal Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 7-08
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Blade: Backward Bearing: SKF/FAG/By Your Demand
Mounting: Free Standing System Type: Single Inlet, Overhang Type
Warranty: 1 Year Delivery Time: 30 Days
High Light:

Q235 Single Suction Steam Boiler

,

High Temperature Single Suction Steam Boiler

,

Overhang High Temperature Centrifugal Fan

Q235 Single Suction Steam Boiler High Temperature Centrifugal Fan



Introduction



The 7-08 series high temperature centrifugal blower is the latest series of high-efficiency industrial centrifugal fan developed by our company. It has the highest efficiency of 85.4%.

It’s suitable for conveying normal temperature or high temperature non-flammable gas (normal air, high temperature gas, corrosive gas, dusty gas), and conveying granule/powder/chip/fiber material.

The current collector is equipped with a mounting flange to facilitate the use of the pipeline by the customer.



Technical data



PRODUCT PARAMETERS
Centrifugal Fan Application
Temperature Normal temperature air, Hot air
Air composition Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials
Centrifugal Fan Performance
Impeller diameter 500~1000 mm
Speed of mainshaft

1470~3070

rpm
Pressure range 2188~4109 Pa
Flow range 4486~36478 m3/h
Centrifugal Fan Structure
Blade Backward
Impeller support SWSI (Single Width, Single Inlet), Impeller overhung.
Drivetrain V-Belt Can assign
Lubrication Oil bath lubrication
Bearing cooling Air cooling, Water cooling, Oil cooling
Centrifugal Fan System
Configuration
Motor ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand…



Can assign

Impeller Q235, Q345, SS304, SS316, HG785, DB685...

Casing, Air inlet cone,

Air inlet damper

Q235, Q345, SS304, SS316, HG785, DB685...
Main shaft 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel...
Bearing FAG, SKF, NSK, ZWZ…
Centrifugal Fan Optional
Components
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator,
Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc


Advantages and Features



1. Metallurgy Smelting Furnace Single Inlet Q235 High Temperature Centrifugal Fan can output higher outlet pressure and provide more gas flow with lower noise. Ability to work stably at higher media temperatures.

2.It has stable and high performance and is widely used in environmental dust removal, material transportation and equipment matching in industrial fields.

3. Equipped with tapered sleeve embedded pulley, easy to assemble and disassemble.

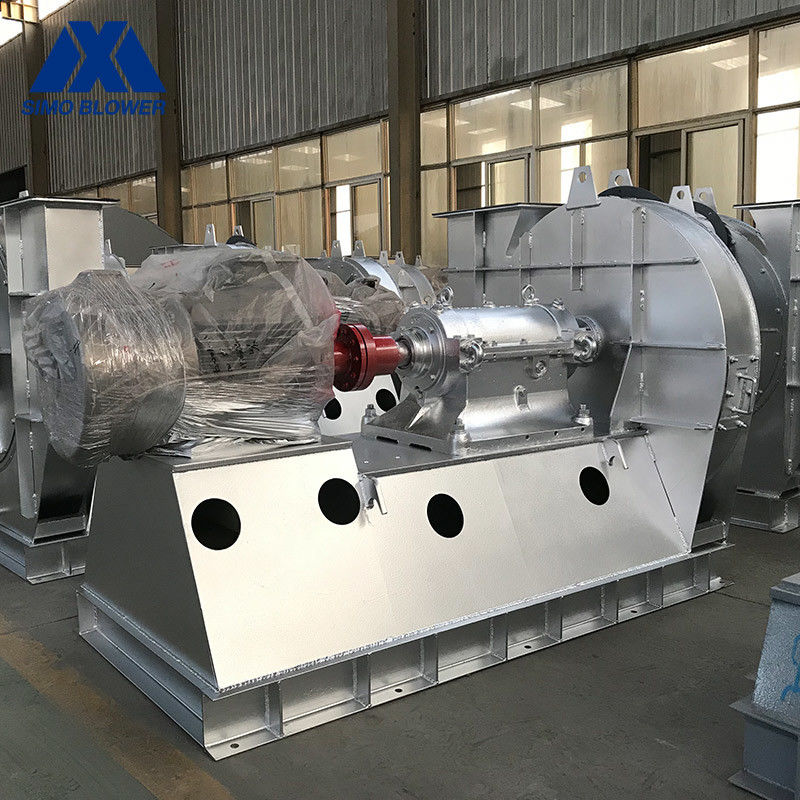

Q235 Single Suction Steam Boiler High Temperature Centrifugal Fan 0

Q235 Single Suction Steam Boiler High Temperature Centrifugal Fan 1

Q235 Single Suction Steam Boiler High Temperature Centrifugal Fan 2
