| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 9-08 |
| Minimum Order Quantity: | 1 Set |
| Price: | 300-5000 USD |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Application: | Industrial Ventilation | Material: | Carbon Steel/Alloy Steel/Stainless Steel |
|---|---|---|---|
| Bearing Cooling: | Air Cooling Or Circulating Water Cooling | After-sales Service Provided: | Field Installation, Commissioning And Training |
| Color: | Customer's Requirement | Category: | Blower |
| High Light: | V Belt Driven Explosion Proof Blower,Stainless Steel Drying Explosion Proof Blower,75kw Centrifugal Ventilation Fans |
||

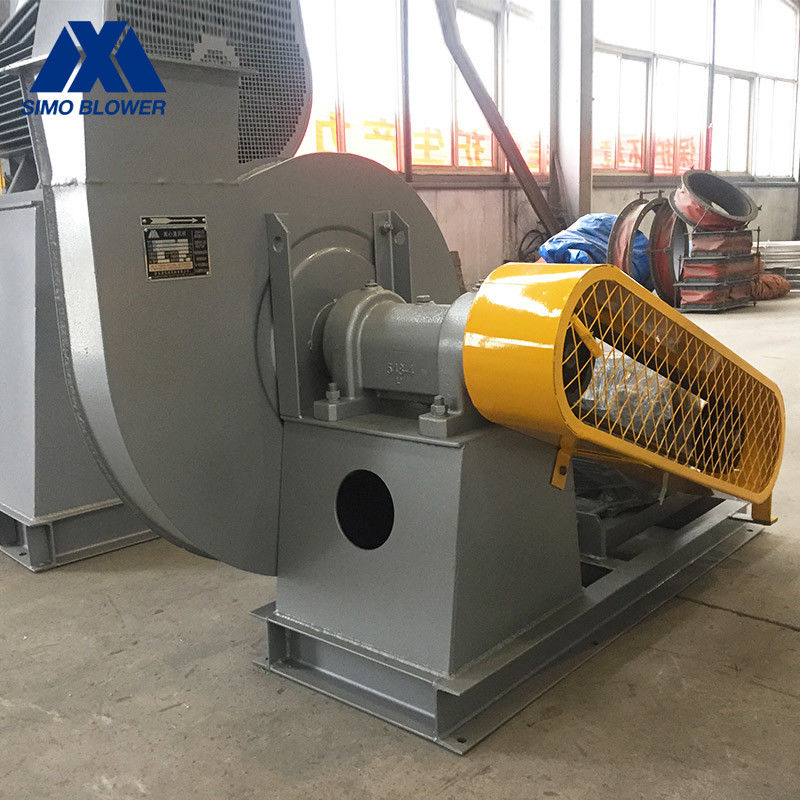

Stainless Steel V-Belt Driven Long Life Drying Explosion Proof Blower
Introduction
This explosion proof blower fan is designed for the purpose of using industrial boiler to work in the high-efficiency area and achieve the energy-saving target.
The blower explosion proof is suitable for equipped with economizer (heater) and smoke and dust removal device.
The fan can also be used in cement kiln decomposition process, steel smelting and other special occasions use of high temperature fan (use heat resistant & high strength material).
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 9-08 | 7.1C | 2900 | 10635～12427 | 12292～19360 | 75～110 |
| 8C | 1450～2900 | 3249～15955 | 8792～27696 | 18.5～200 | |
| 9C | 1450 | 4181～4869 | 12518～19717 | 30～45 | |
| 10C | 1450 | 5065～6143 | 17172～30052 | 55～75 | |
| 11.2C | 960～1450 | 3031～7747 | 15973～42221 | 30～132 | |
| 12.5C | 960～1450 | 3450～9713 | 22206～58695 | 45～250 | |
| 14C | 960～1450 | 4341～12285 | 31197～82463 | 75～400 | |
| 16C | 960～1450 | 5696～16250 | 46569～123090 | 185～850 |
Application
Explosion proof centrifugal fan is widely used in the cement industry, building materials industry, environmental protection industry, metallurgical industry, power industry projects such as large-scale dust collector, industrial boilers, ventilation systems, cooling.
FAQ
1. What parameters need to be provided when you design the industrial centrifugal fans?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
