Dust Collector Fan
>
16Mn Energy Saving Dust Collector Blower Fan High Wear Resistance

16Mn Energy Saving Dust Collector Blower Fan High Wear Resistance

Product Details:
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 7-08
Detail Information
Place of Origin:
Henan China
Brand Name:
SIMO
Certification:
CE, ISO9001:2008,TUV
Model Number:
SIMO Blower 7-08
Impeller Support:
SWSI (Single Width, Single Inlet), Impeller Overhung
Bearing Type:
Rolling Bearing
Power Source:
Three Phase AC Motor
Medium:
Clean Air/Dusty Air
Blade:
Forward / Backward/Backward Curved
Lubrication:
Oil Bath Lubrication
Highlight:

High Light

Highlight:

Energy Saving Dust Collector Blower Fan

,

16Mn Dust Collector Blower Fan

,

High Wear Resistance Dust Collector Fan

Trading Information
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Export Wooden Case Packing, Steel pallet Packing
Delivery Time:
15-35 Days
Payment Terms:
T/T, L/C, Payment Term Is Negotiable
Supply Ability:
500 Sets Per Month
Product Description

16Mn Energy Saving High Wear Resistance Dust Collector Blower Fan



Detail introduction



The 7-08 series medium pressure centrifugal fan is the latest series of high-efficiency industrial centrifugal fan developed by our company. It has the highest efficiency of 85.4%.

It belongs to small flow and medium pressure series.

This series of fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.

The current collector and impeller front plate are processed by advanced spinning process and ensure precision.



Product features



1. It can output higher outlet pressure and provide more gas flow with lower noise. Ability to work stably at higher media temperatures.

2. Customized design according to customer's performance requirements, and optimized by CFD technology, the energy consumption is lower than similar models.

3. The airflow channel and the impeller have been optimized several times, which is more efficient and energy-saving than ordinary large-flow fans.

4. For the material of impeller and main shaft, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature resistant high-strength alloy steel for different working conditions temperature and working speed, so that the impeller and main shaft can still maintain a reliable strength at high temperature.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
7-08 5D 3030 2982 ~ 3456 4486 ~ 8971 11 ~ 15
5.6D 2360 26232264 49099817 11
7.1D 1830 ~ 2450 2188 ~ 3862 775720771 15 ~ 30
8D 1910 35173034 1158223164 30
9D 1570 30022591 1355527111 30
10D 1470 ~ 1650 2806 ~ 4109 17410 36478 45 ~ 55



Application



1. In the factory, the workshops, warehouses and other departments are equipped with centrifugal fans, which play a role in ventilation, ensure the fresh air in the workshop, and help to purify the working environment and the health of employees. At the same time, the factory warehouse is equipped with centrifugal fans to dry the air to ensure that the mechanical equipment or other industrial products maintain the original quality.

2. Install centrifugal fans in mines and tunnels to re-enter fresh air and exhaust dirty air to ensure air circulation in the mines and tunnels.Centrifugal fans can help dust discharge, ensure air transparency in mines and tunnels, and ensure the health of workers in mines and tunnels.

3. A centrifugal fan is installed in the cooling tower, which not only plays the role of ventilation and ensures the normal operation of the cooling tower, but also plays a positive role in improving the cooling effect of the cooling tower by the large flow wind generated by the centrifugal fan.

4. Main ventilator in coal mine is an important equipment to ensure normal ventilation in underground mine, which not only affects the production capacity of coal mine, but also is very important to the safety of mining industry.

5. Centrifugal fans are widely used in boilers and industrial furnaces. They mainly play the role of ventilation and air induction. On the one hand, they ensure the environment of the boiler room or industrial kiln. On the other hand, they allow the replacement of oxygen-enriched air, which makes the firepower of the boiler or kiln more fierce and saves coal to a certain extent. Wait for power resources to reduce enterprise production costs.



FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.



2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.



3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.

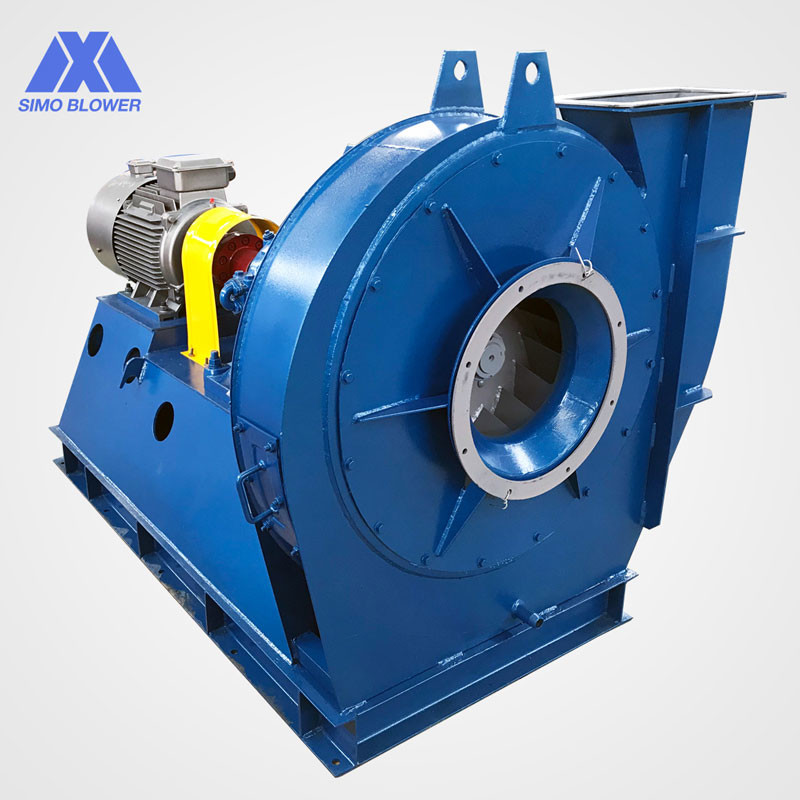

16Mn Energy Saving Dust Collector Blower Fan High Wear Resistance 0
