| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 5-06 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Application: | Industrial Ventilation | Medium: | Clean Air/Dusty Air |
|---|---|---|---|
| Impeller Support: | SWSI (Single Width, Single Inlet), Impeller Overhung | After-sales Service Provided: | Field Installation, Commissioning And Training |
| Lubrication: | Oil Bath Lubrication | Electric Current Type: | AC |
| High Light: | Anticorrosion Stainless Steel Blower,High Volume Anticorrosion Stainless Steel Blower,Harmful Air Emissions Industrial Centrifugal Blower |
||

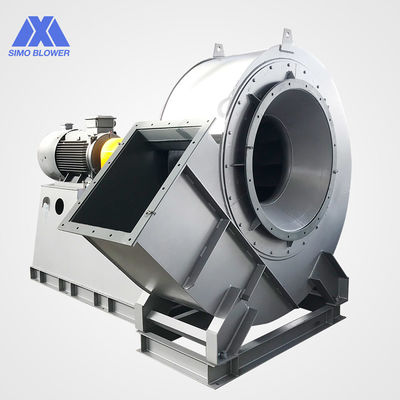

Hot Sale High Volume Anticorrosion Harmful Air Emissions Stainless Steel Blower
Introduction Of Centrifugal Fan
The 5-06 series fan can be used in the feeding system of 2-670t/h steam boiler in thermal power plants, it can also meet the requirements of the high-pressure head performance parameters of the fluidized bed furnace.
This series of fans can also be used for dust removal, mine ventilation and general ventilation systems. The blower delivers air, and the induced draft fan delivers flue gas or gas containing foreign particles.
Use liquid lubricating oil. It is not necessary to open the bearing housing to replace and fill the lubricating oil. The bearing housing is provided with an observation window for easy observation of the quality and stock of the lubricating oil.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 5-06 | 8D | 1450 | 2592～1989 | 12028～20607 | 15 |
| 10D | 1450 | 4051～3108 | 23493～40249 | 55 | |
| 11D | 1450 | 3036～2329 | 31269～53571 | 55 | |
| 12.4D | 1450 | 3858～2960 | 44792～76740 | 90 |
Product Features
1. The bearing housing uses labyrinth mechanical seal, unique anti-leakage design inside, vent hole at the top, and sealing grease at the joint, completely eliminating the possibility of oil leakage in the bearing hosing.
2. After annealed treatment, the internal stress of the structure generated during welding can be completely eliminated to ensure that the impeller will not creepage and crack.
3. The impeller is subjected to a high standard of dynamic balancing adjusting to ensure stable operation of the fan.
4. After running test and vibration value detection, the operation is reliable.
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
