Stainless Steel Blower
>
Single Suction Backward CFB Boiler Stainless Steel Centrifugal Blower 1450r/Min

Single Suction Backward CFB Boiler Stainless Steel Centrifugal Blower 1450r/Min

Product Details:
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 4-10
Detail Information
Place of Origin:
Henan China
Brand Name:
SIMO
Certification:
CE, ISO9001:2008,TUV
Model Number:
SIMO Blower 4-10
Material:
Carbon Steel/Alloy Steel/Stainless Steel
Warranty:
1 Year
Feature:
High Performance
Lubrication:
Oil Bath Lubrication
Bearing:
SKF/FAG/By Your Demand
Motor:
SIEMENS/ABB/By Your Demand
High Light:

High Light

High Light:

1450r/Min Stainless Steel Centrifugal Blower

,

CFB Boiler Stainless Steel Centrifugal Blower

,

1450r/Min stainless steel centrifugal fan

Trading Information
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Export Wooden Case Packing, Steel pallet Packing
Delivery Time:
15-35 Days
Payment Terms:
T/T, L/C, Payment Term Is Negotiable
Supply Ability:
500 Sets Per Month
Product Description

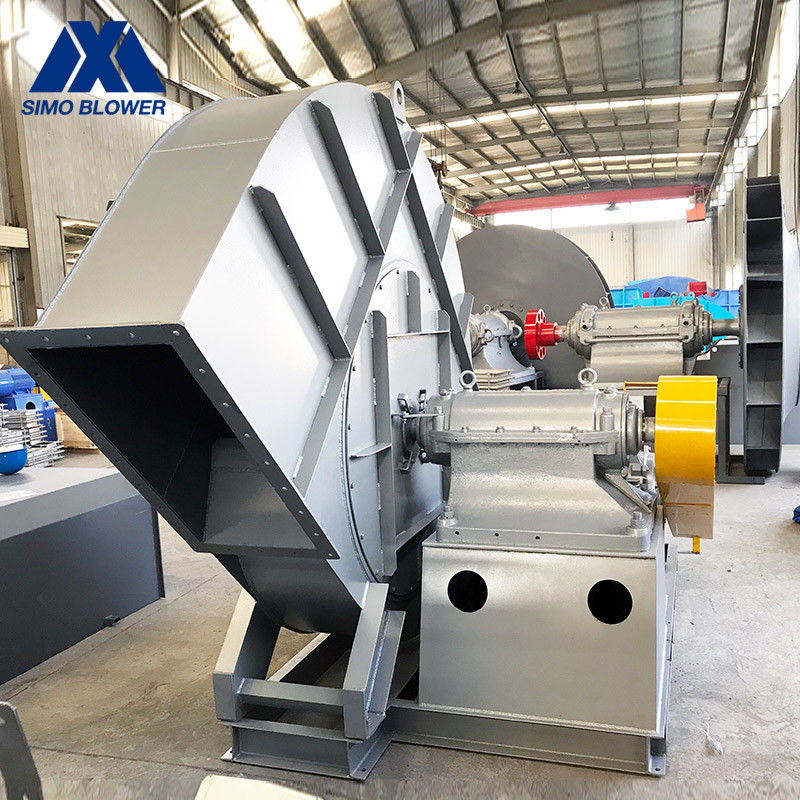

Single Suction Backward CFB Boiler Stainless Steel Centrifugal Blower



Introduction Of Centrifugal Fan



G4-10 and Y4-10 series ventilation and induced draft fans are suitable for the ventilation and induced draft fan systems of 2~670T/h steam boilers in thermal power plants.

It can also be used for mine ventilation and general ventilation without other special requirements; Mainly used to meet the needs of large air flow applications, low noise and high efficiency.

They can transport clean gas, dusty gas, flammable gas, corrosive gas, powder or granular materials at normal temperature or high temperature.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
4-10 8C 1450 2104~1400 16156~30993 18.55
9C 960 ~ 1450 775 ~ 2668 15229 ~ 44128 11 ~ 37
10C 730 ~ 1450 553 ~ 3301 15886 ~ 60533 7.5 ~ 55
11C 730 ~ 1450 669 ~ 4003 21144 ~ 80570 11 ~ 90
12C 730 ~ 1450 797 ~ 4777 25661 ~ 104600 15 ~ 132
14C 730 ~ 1450 1086 ~ 6541 43591 ~166100 37 ~ 315
16C 580 ~ 960 895 ~ 3709 51699 ~ 164150 45 ~ 185
18C 580 ~ 960 1133 ~ 4710 73610 ~ 233730 75 ~ 280
20C 580 ~ 960 1400 ~ 5837 100970 ~ 320610 110 ~ 520
22C 480 ~ 960 1216 ~ 6865 116000 ~ 434000 140 ~ 850
25C 480 ~ 730 1579 ~ 5138 171000 ~ 484000 165 ~ 700
28C 375 ~ 730 1205 ~ 6400 187000 ~ 680000 320 ~ 1250
29.5C 596 ~ 745 3236 ~ 7218 348000 ~ 810000 800 ~ 1600


Product Features


1. The impeller is annealed to eliminate the internal stress generated during welding, ensuring that the impeller does not undergo creep and cracks.

2. The weld of the impeller and the main shaft are ultrasonic flaw detection to ensure that there are no welding defects and material defects to ensure strength.

3. The impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.

4. There are a variety of accessories to choose from.
