| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 7-09 |
| Minimum Order Quantity: | 1 Set |
| Price: | 300-5000 USD |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Application: | Industrial Ventilation | Feature: | High Performance |
|---|---|---|---|
| Main Shaft: | High-strength Carbon Structural Steel | Impeller: | Dynamic Balanced |
| System Type: | Single Inlet, Overhang Type | Type: | Centrifugal Fan |
| High Light: | explosion proof blower fan,large centrifugal blower |
||

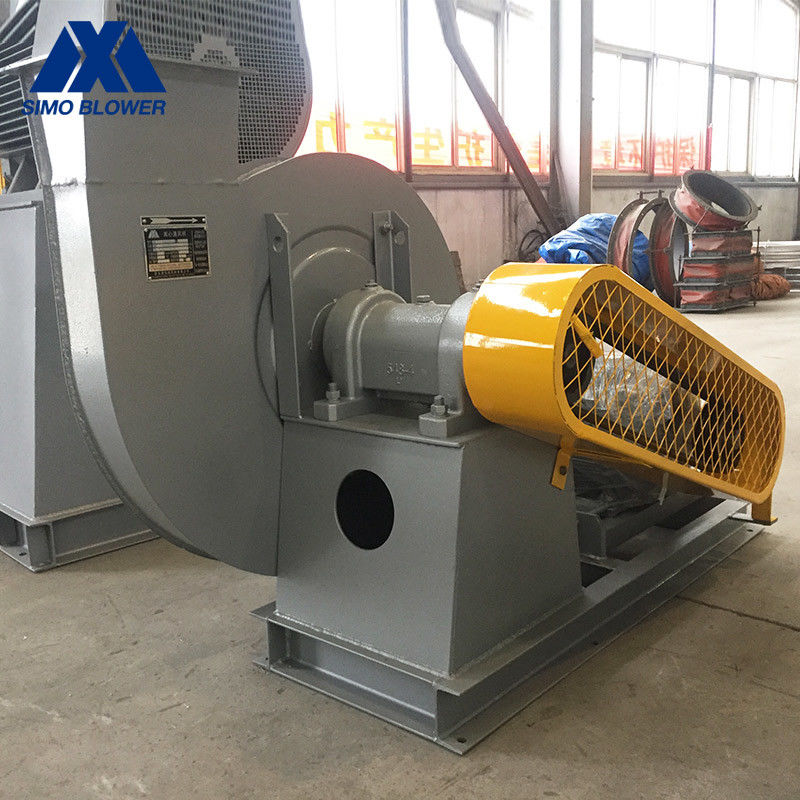

Stainless Steel Fluidized Bed Boiler Explosion Proof Centrifugal Blower Fan
Introduction
The Stainless Steel Fluidized Bed Boiler Explosion Proof Centrifugal Blower Fan has moderate pressure and large flow, belongs to the low noise series fan and has stable performance.
It can output higher outlet pressure and provide more gas flow with lower noise. Ability to work stably at higher media temperatures.Customized design according to customer's performance requirements, and optimized by CFD technology, the energy consumption is lower than similar models.The airflow channel and the impeller have been optimized several times, which is more efficient and energy-saving than ordinary large-flow fans.For the material of impeller and main shaft, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature resistant high-strength alloy steel for different working conditions temperature and working speed, so that the impeller and main shaft can still maintain a reliable strength at high temperature.
Technical data
| series | model |
Centrifugal Blowe Rotation Speed |
Centrifugal Blowe Total Pressure |
Centrifugal Blowe Air Capacity |
Power (kW) |
|---|---|---|---|---|---|
|
7-09 Centrifugal Blowe |
5C | 3030 | 2982 ~ 3456 | 4486 ~ 8971 | 11 ~ 15 |
| 5.6C | 2360 | 2623～2264 | 4909～9817 | 11 | |
| 7.1C | 1830 ~ 2450 | 2188 ~ 3862 | 7757～20771 | 15 ~ 30 | |
| 8C | 1910 | 3517～3034 | 11582～23164 | 30 | |
| 9C | 1570 | 3002～2591 | 13555～27111 | 30 | |
| 10C | 1470 ~ 1650 | 2806 ~ 4109 | 17410 ～ 36478 | 45 ~ 55 |
Application
Centrifugal fan is widely used in the cement industry, building materials industry, environmental protection industry, metallurgical industry, power industry projects such as large-scale dust collector, industrial boilers, ventilation systems, cooling.
FAQ
1. What parameters need to be provided when you design the industrial centrifugal fans?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
