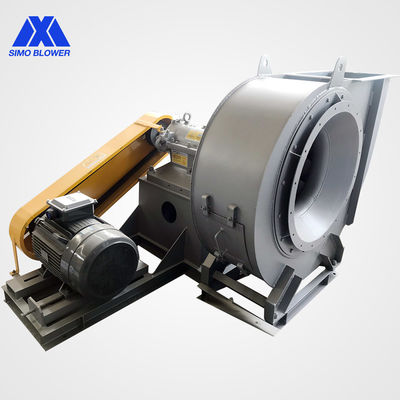

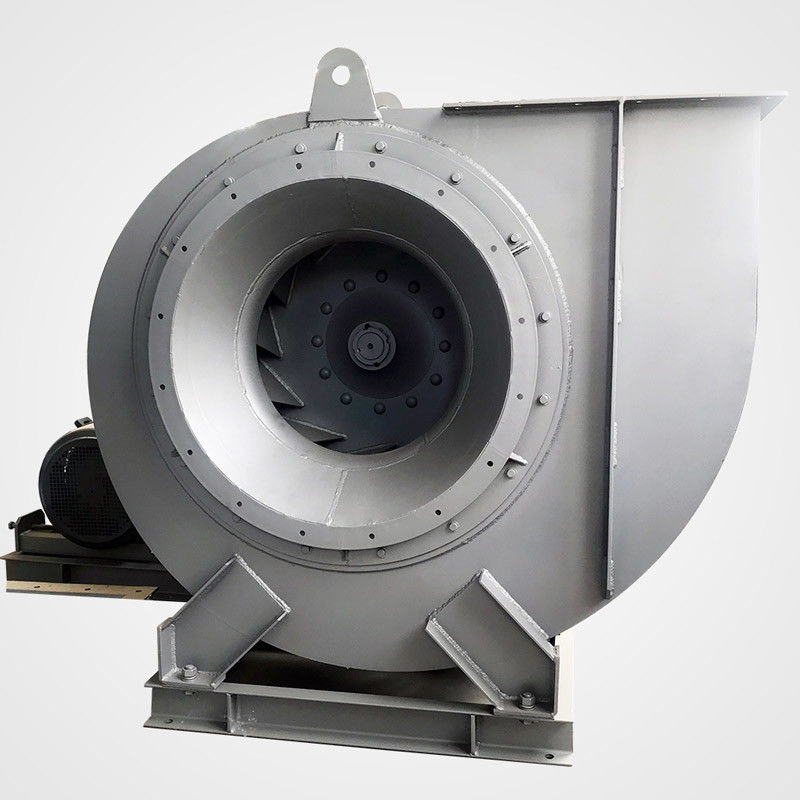

Single Inlet Medium Pressure Building Ventilation Stainless Steel Blower
Introduction Of Centrifugal Fan
The 5-12 series centrifugal fan is an enhanced version of the 5-11 series medium pressure centrifugal fan.
It has a larger output flow than the 5-11 series. It is also used to transport a variety of common gases and hard materials in the industrial field, the application object is exactly the same as 5-11 series fan.
The bearing cooling method selects a low-cost water-cooling method or an oil-cooling method with better heat dissipation depending on the gas temperature and the conditions of the use environment. For extremely high temperature operating conditions, an electronic cooler can also be added to absolutely protect the reliable operation of the fan system.
Technical data
series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
---|---|---|---|---|---|
5-12 | 4C | 2500~3550 | 742~2221 | 2065~5564 | 2.2~5.5 |
5C | 2240~3150 | 964~2819 | 3772~9851 | 4~11 | |
6.3C | 2000~2800 | 1221~3545 | 6737~17516 | 7.5~22 | |
8C | 1400~2000 | 1100~3323 | 9656~25619 | 11~30 | |
10C | 1250~1800 | 1419~4483 | 15451~44634 | 22~75 | |
12.5C | 1000~1400 | 2145~4234 | 24143~67803 | 37~110 |
Product Features
This can use different speeds to meet the requirements of various dust collectors in the same tonnage boiler, combined redundant fan series and machine number.
It is used to transport various common gases and hard materials in industrial production, and is suitable for various harsh conditions such as high temperature, wear and corrosion.
It is capable of outputting a higher outlet pressure while providing more gas flow with lower noise. Stable operation at higher media temperatures.
The adjustment door can be used to flexibly adjust the pressure and flow of the fan during operation. It can also be equipped with a variable frequency motor to adjust the pressure and flow of the fan by changing the speed.
FAQ
1, Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2, Q: How long is the delivery time?
A : A:5-35 days.
3, Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4, Q: What’s your warranty?
A: 1 year.
5, Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
