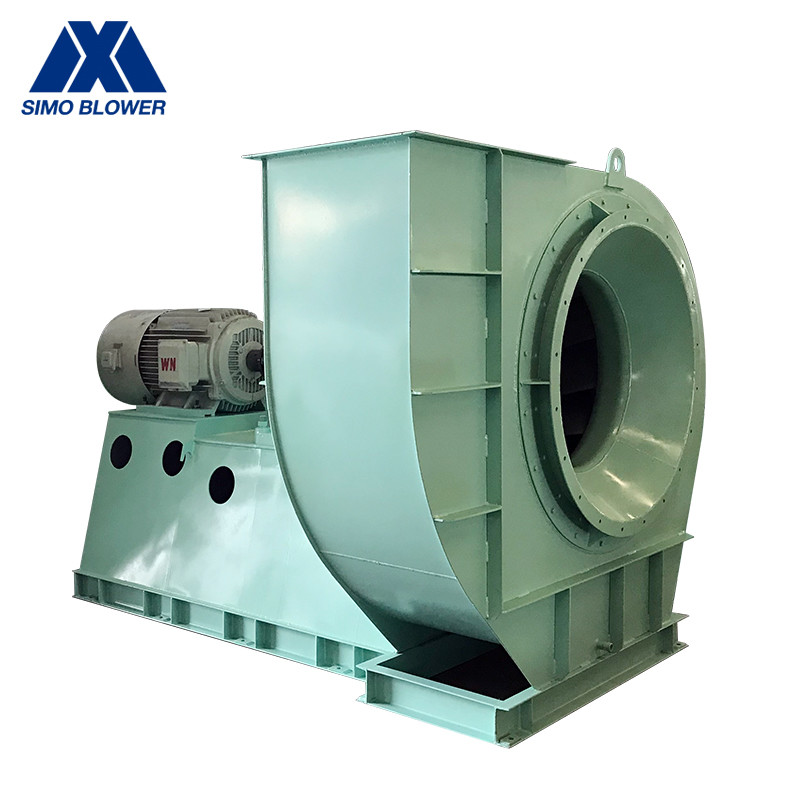

Carbon Steel Single Suction Backward Curved Material Handling Blower
Introduction
The 5-12 series centrifugal fan is an enhanced version of the 5-11 series medium pressure centrifugal fan.
It has a larger output flow than the 5-11 series. It is also used to transport a variety of common gases and hard materials in the industrial field, the application object is exactly the same as 5-11 series fan.
In the case of a monolithic bracket, the installation is very simple and requires little support from a professional technician.
After the production is completed, all products are tested for running and vibration values for reliable operation.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 5-12 | 4D | 2500～3550 | 742～2221 | 2065～5564 | 2.2～5.5 |
| 5D | 2240～3150 | 964～2819 | 3772～9851 | 4～11 | |
| 6.3D | 2000～2800 | 1221～3545 | 6737～17516 | 7.5～22 | |
| 8D | 1400～2000 | 1100～3323 | 9656～25619 | 11～30 | |
| 10D | 1250～1800 | 1419～4483 | 15451～44634 | 22～75 | |
| 12.5D | 1000～1400 | 2145～4234 | 24143～67803 | 37～110 |
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
-
-
