60, 000 Tons/Year Polycarbonate Project Flue Gas Collection Centrifugal Fan

Name: 60, 000 Tons/Year Polycarbonate Project Flue Gas Collection Centrifugal Fan
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: 7-08 cantrifugal fan
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	SIMO BLOWER
Certification:	CE/ISO9001/ISO45001
Model Number:	7-08 cantrifugal fan

Detail Information

Place of Origin:

China

Brand Name:

SIMO BLOWER

Certification:

CE/ISO9001/ISO45001

Model Number:

7-08 cantrifugal fan

Size:

Customized

Pressure:

Medium Pressure

Blade Material:

Stainless Steel

Product Name:

60, 000 Tons/Year Polycarbonate Project Flue Gas Collection Centrifugal Fan

Category:

Centrifugal Fan

Voltage:

380V/50Hz/60Hz

Impeller Diameter:

400-3500mm

Electric Current Type:

Speed:

≤3000rpm

Motor:

Chinese Famous Brand, ABB, Siemens, Weg Etc

Bearing Cooling:

Air Cooling Or Circulating Water Cooling

Drive:

Direct Driven, Coupling Driven, Belt Driven

Bearing Type:

Rolling Bearing

Warranty:

1year

HS Code:

4107960701

Keywords:

Industrial Centrifugal Fan,Flue Gas Collection System,Corrosion-Resistant Blower

Highlight:

High Light

Highlight:

Circulating Water Cooling Material Blower

Direct Driven Material Handling Blower

Rolling Bearing Material Handling Blower

Trading Information

Minimum Order Quantity:

≥1 set

Price:

$500-1,0000.00/set

Packaging Details:

1.Standard export wooden case 2.steel pallet waterproof cloth package 3.other package to meet your requirement

Delivery Time:

35days (To be negotiated)

Payment Terms:

L/C, T/T

Supply Ability:

300sets 30days

Product Description

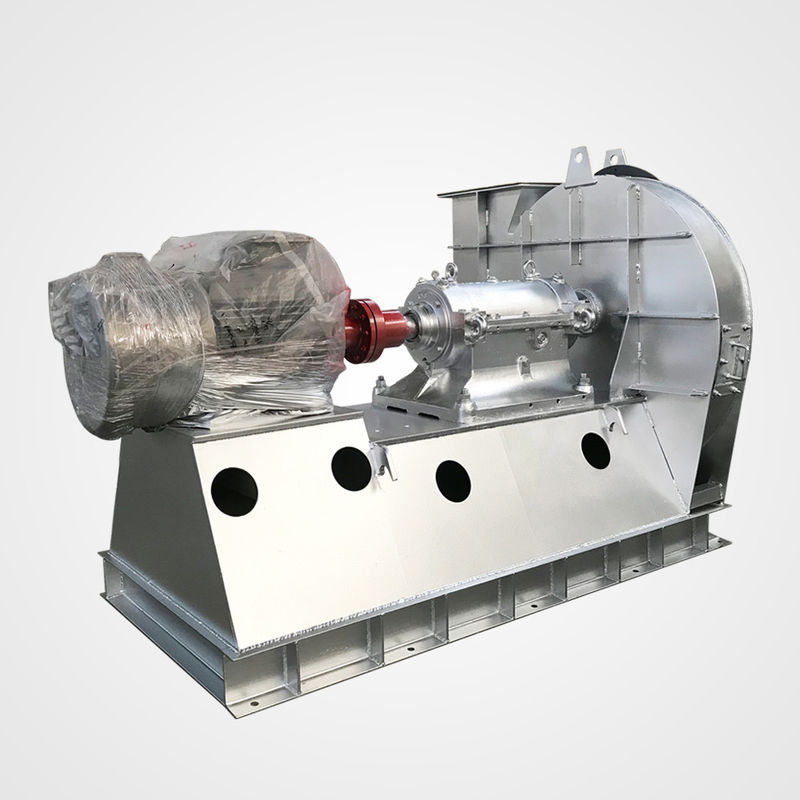

60, 000 Tons/Year Polycarbonate Project Flue Gas Collection Centrifugal Fan

This Flue Gas Collection Centrifugal Fan for a 60,000 Tons/Year Polycarbonate Project is specially engineered for large-scale chemical flue gas extraction systems. Designed for efficiency, corrosion resistance, and stable operation, it features high-grade carbon steel or stainless steel construction to withstand corrosive gases generated during polycarbonate production. With an optimized impeller and aerodynamic structure, the fan delivers high air volume with low noise and energy-saving performance, making it ideal for environmental protection, chemical processing, and industrial exhaust treatment applications.

1.This series of fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.
2.The current collector and impeller front plate are processed by advanced spinning process and ensure precision.
3. V-belt driving and coupling driving type fan are equipped with integral bearing box, which has good lubrication, stable operation and long bearing life.
4. Equipped with tapered sleeve embedded pulley, easy to assemble and disassemble.
5. The current collector is equipped with a mounting flange to facilitate the use of the pipeline by the customer.

The following datas are only part of performance of our product.
If you can't find the datas you need, pls send us your performance requirements
we will provide you customized design service.

60, 000 Tons/Year Polycarbonate Project Flue Gas Collection Centrifugal Fan 1

60, 000 Tons/Year Polycarbonate Project Flue Gas Collection Centrifugal Fan
Performance	Pressure range	3215-27349	Pa
	Air flow range	1049-33030	m3/h
	Impeller diameter	400-3500	mm
	Speed	≤3000	rpm
Material	Blower fan casing	Q235, Q345, stainless steel	Design as special
	Blower fan shaft	45# steel, Q304, SS304,SS316L
	Blower fan impeller	Q304, 12Cr1Mov,15Crmov, 15MnV
Medium	10---120	Dustiness<80 g/m3	incombustible
Motor	Siemens, ABB, WN, SIMO, LA	IP 54,55,56	3 phase
Optional components	System base frame, Protective screening, Silencer, Inlet & Outlet pipeline compensator, Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument, Lube system, Overhead lube tank.
