Place of Origin: | Henan China |
---|---|
Brand Name: | SIMO |
Certification: | CE, ISO9001:2008,TUV |
Model Number: | SIMO Blower 5-10 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiable |
Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
Delivery Time: | 15-35 Days |
Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
Supply Ability: | 500 Sets Per Month |
Feature: | High Performance | After-sales Service Provided: | Field Installation, Commissioning And Training |
---|---|---|---|
Mounting: | Free Standing | Blade: | Forward / Backward/Backward Curved |
Color: | Customer's Requirement | Impeller Support: | SWSI (Single Width, Single Inlet), Impeller Overhung |
High Light: | Single Suction Backward Material Handling Blower,SWSI Backward Material Handling Blower,SWSI Backward Centrifugal Fan |

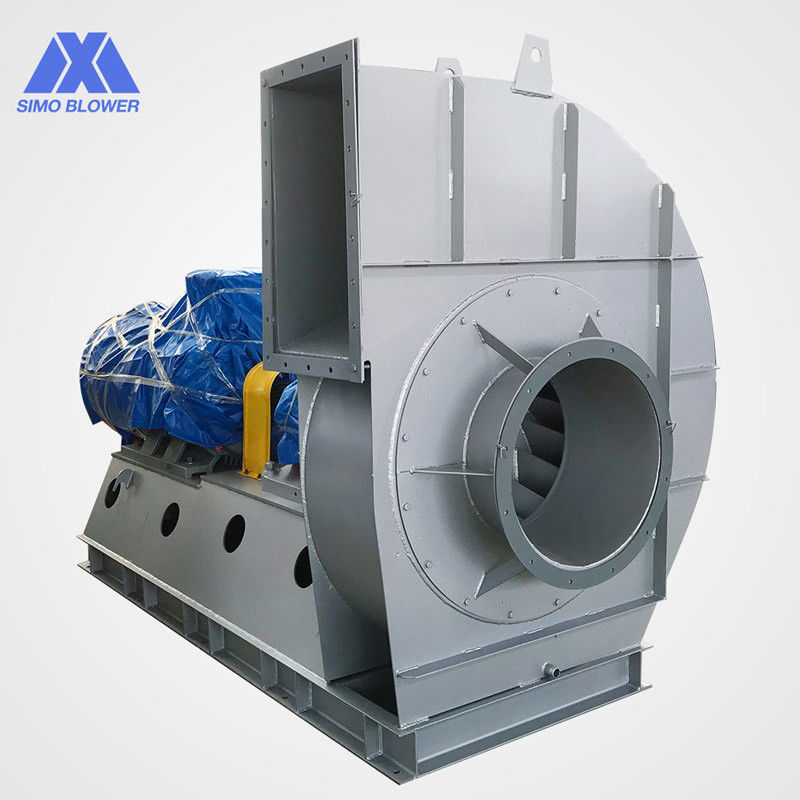

Single Suction Long Lifetime Backward Material Handling Blower
Introduction
1. The adjustment door can be used to flexibly adjust the pressure and flow of the fan during operation. It can also be equipped with a variable frequency motor to adjust the pressure and flow of the fan by changing the speed.
2. The bearing cooling method selects a low-cost water-cooling method or an oil-cooling method with better heat dissipation depending on the gas temperature and the conditions of the use environment. For extremely high temperature operating conditions, an electronic cooler can also be added to absolutely protect the reliable operation of the fan system.
Technical data
series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
---|---|---|---|---|---|
5-10 | 4D | 2900 | 1606~1232 | 3007~5152 | 3 |
4.5D | 2880 | 2004~1538 | 4252~7284 | 5.5 | |
5D | 2900 | 2509~1925 | 5873~10062 | 7.5 | |
5.4D | 2900 | 2927~2246 | 7398~12675 | 11 | |
6D | 2500 | 2685~2060 | 8749~14989 | 15 | |
8D | 2000 | 3055~2344 | 16591~28424 | 30 | |
9D | 2000 | 3867~2967 | 23623~40471 | 45 | |
10D | 1600 | 3055~2344 | 25923~44413 | 45 |
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
