| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 6-12 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Feature: | High Performance | After-sales Service Provided: | Field Installation, Commissioning And Training |
|---|---|---|---|
| Material: | Carbon Steel/Alloy Steel/Stainless Steel | Motor: | SIEMENS/ABB/By Your Demand |
| Color: | Customer's Requirement | Impeller Support: | SWSI (Single Width, Single Inlet), Impeller Overhung |
| High Light: | Wear Resistant Material Handling Blower,16Mn Material Handling Blower,Medium Pressure Material Handling Blower |
||

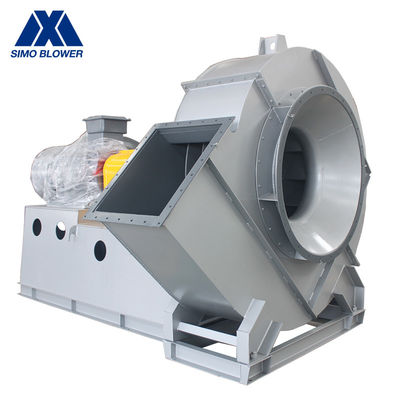

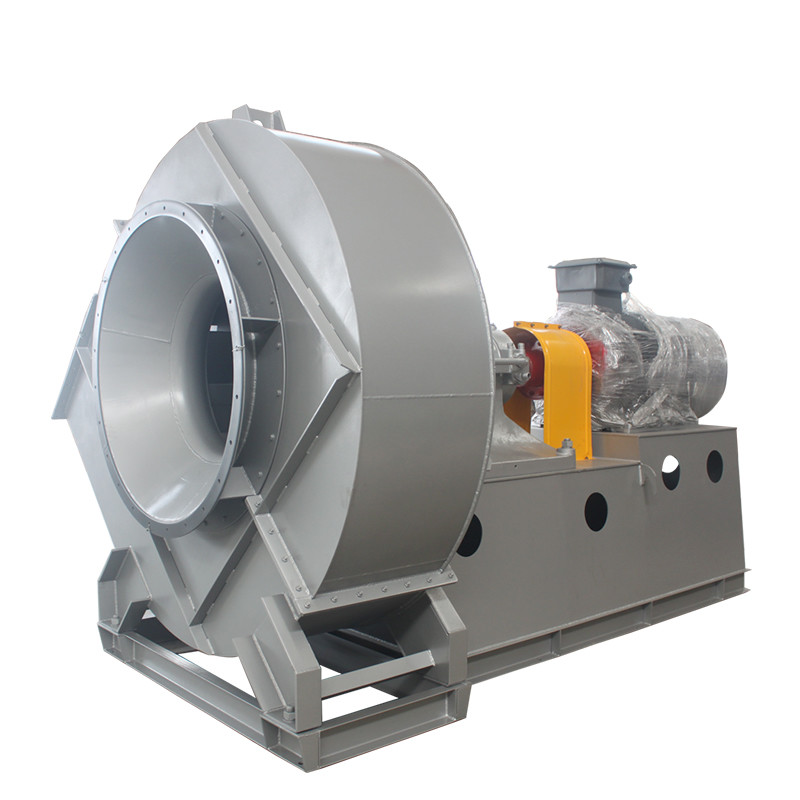

16Mn Medium Pressure Wear Resistant Material Handling Blower
Introduction
6-12 series high-pressure heavy-duty centrifugal fan, suitable for conveying non-flammable gas and granule/powder/chip/fiber material at normal temperature or high temperature.
The output gas flow is slightly larger than the 6-11 series heavy-duty centrifugal fan, the air volume is large, and the pressure is high, smooth operation, high reliability and long life.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 6-12 | 3.15D | 1600～3150 | 354～1880 | 755～3323 | 0.75～3 |
| 4D | 1250～2500 | 345～1933 | 1184～5495 | 0.75～4 | |
| 5D | 1400～2000 | 675～1953 | 2487～8623 | 2.2～7.5 | |
| 6.3D | 1000～1600 | 344～1985 | 1776～13799 | 1.1～11 | |
| 8D | 1120～1400 | 547～1517 | 3554～12074 | 3～7.5 | |
| 10D | 800～1250 | 350～1953 | 2843～22075 | 1.5～15 | |
| 12.5D | 400～1000 | 350～2043 | 7402～56902 | 2.2～22 |
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
