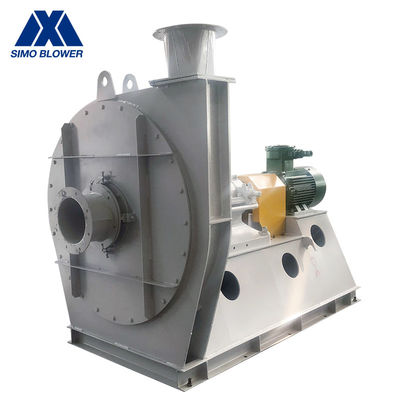

Q235 Single Suction Long Life Industrial Dust Collector Centrifugal Flow Fan

Q235 Single Suction Long Life Industrial Dust Collector Centrifugal Flow Fan
Brand Name
SIMO
Product Model
SIMO Blower 9-13
Certificate
CE, ISO9001:2008,TUV
Country Of Origin
Henan China
MOQ
1 Set
Unit Price
Negotiable
Payment Method
T/T, L/C, Payment Term Is Negotiable
Supply Capacity
500 Sets Per Month
Product Details
Highlight:

Dust Collector Centrifugal Flow Fan

,

Q235 Centrifugal Flow Fan

,

Q235 centrifugal exhaust fan
Application: Industrial Ventilation
Impeller: Dynamic Balanced
After-Sales Service Provided: Field Installation, Commissioning And Training
Main Shaft: High-strength Carbon Structural Steel
Power Source: Three Phase AC Motor
Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung
Product Description
Detailed Specifications And Features

Q235 Single Suction Long Life Industrial Dust Collector Centrifugal Flow Fan

Introduction



The fan can also be used in cement kiln decomposition process, steel smelting and other special occasions use of high temperature fan (use heat resistant & high strength material).

The 9-10.28 series high-pressure centrifugal fan is the latest developed high-efficiency and energy-saving product, whose performance fully meets the aerodynamic performance of general fan 9-08 series, and has the characteristics of high efficiency, low noise, flat performance curve, large flow regulation range and wide efficient area.



Technical data



series model Rotation Speed
(r/min)		 Total Pressure
(Pa)		 Air Capacity
(m³/h)		 Power
(kW)
9-13 4D 2900 2285～2452 3297～6594 5.5～7.5
4.5D 2900 2893～3060 4695～9389 11～15
5D 2900 3570～3854 6440～12880 15～22
5.6D 2900 4482～4805 9048～18095 30～45
6.3D 1450 1422～1500 6441～12882 7.5～11
7.1D 1450 1804～1942 9220～18439 11～18.5
8D 1450 2285～2462 13189～26378 18.5～30
9D 1450 2893～3099 18779～37558 37～55
10D 1450 3570～3854 25760～42933 55～90
11.2D 960～1450 1961～4835 23961～72381 30～160
12.5D 730～960 1412～2638 25329～66620 22～90
14D 730～960 1775～3305 35586～93596 45～160
16D 730～960 2314～4295 53120～139712 75～280



FAQ


1.Q: What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow rate(m3/h), Total pressure(Pa) or Static pressure(Pa), Inlet temperature(°C), Voltage and frequency on the working site.



2. Q:What is your delivery time?
A:15-35workdays, depending on the model of the fan.



3.Q:Are you manufacturer or trading company?
A:We are the professional manufacturer of centrifugal fans , over 65 years production experience and sales experience.



4.Q:What's your MOQ?
A:The MOQ is 1set,but larger quantity, lower price.



5.Q: What’s your warranty?
A: 12 months after arrival of the goods on site.



6.Q:How do you control the product's quality?
A:All the products have quality testing and dynamic balance before delivery.



Application



Centrifugal fan is applied in industrial boiler, (centrifugal fan can be applied in industrial boiler,) it also can be applied in industrial kilns, blast furnace, Industrial waste heat recovery device, Electrolytic aluminium production line air purification system and other industrial work environment.



Q235 Single Suction Long Life Industrial Dust Collector Centrifugal Flow Fan 0

Q235 Single Suction Long Life Industrial Dust Collector Centrifugal Flow Fan 1



Q235 Single Suction Long Life Industrial Dust Collector Centrifugal Flow Fan 2
