Heavy Duty Stainless Steel Antiwear Metallurgy Centrifugal Flow Fan

Heavy Duty Stainless Steel Antiwear Metallurgy Centrifugal Flow Fan
Brand Name
SIMO
Product Model
SIMO Blower 9-10
Certificate
CE, ISO9001:2008,TUV
Country Of Origin
Henan China
MOQ
1 Set
Unit Price
Negotiable
Payment Method
T/T, L/C, Payment Term Is Negotiable
Supply Capacity
500 Sets Per Month
Product Details
Highlight:

Metallurgy Centrifugal Flow Fan

,

Antiwear Centrifugal Flow Fan

,

Antiwear high pressure centrifugal blower
Application: Industrial Ventilation
Feature: High Performance
After-Sales Service Provided: Field Installation, Commissioning And Training
Main Shaft: High-strength Carbon Structural Steel
Bearing Type: Rolling Bearing
Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung
Product Description
Detailed Specifications And Features

Heavy Duty Stainless Steel Antiwear Metallurgy Centrifugal Flow Fan

Introduction



The 9-10.28 series high-pressure centrifugal fan is the latest developed high-efficiency and energy-saving product, whose performance fully meets the aerodynamic performance of general fan 9-08 series, and has the characteristics of high efficiency, low noise, flat performance curve, large flow regulation range and wide efficient area.



Technical data



series model Rotation Speed
(r/min)		 Total Pressure
(Pa)		 Air Capacity
(m³/h)		 Power
(kW)
9-10 8D 1450～2900 3231～15034 3297～14287 7.5～110
9D 1450 4101～4597 4695～10717 15～22
10D 1450 4958～5840 6440～15455 30～37
11.2D 960～1450 2705～7364 5990～21713 15～75
12.5D 960～1450 3975～9229 8327～30186 22～110
14D 960～1450 4249～11668 11699～42409 37～220
16D 960～1450 5575～15425 17463～63305 75～315


FAQ



1.Q: What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow rate(m3/h), Total pressure(Pa) or Static pressure(Pa), Inlet temperature(°C), Voltage and frequency on the working site.



2. Q:What is your delivery time?
A:15-35workdays, depending on the model of the fan.



3.Q:Are you manufacturer or trading company?
A:We are the professional manufacturer of centrifugal fans , over 65 years production experience and sales experience.



4.Q:What's your MOQ?
A:The MOQ is 1set,but larger quantity, lower price.



5.Q: What’s your warranty?
A: 12 months after arrival of the goods on site.



6.Q:How do you control the product's quality?
A:All the products have quality testing and dynamic balance before delivery.



Application



Centrifugal fan is applied in industrial boiler, (centrifugal fan can be applied in industrial boiler,) it also can be applied in industrial kilns, blast furnace, Industrial waste heat recovery device, Electrolytic aluminium production line air purification system and other industrial work environment.

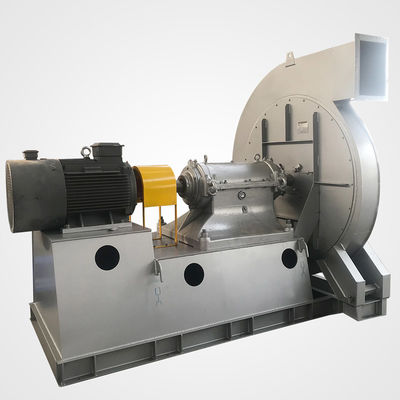

Heavy Duty Stainless Steel Antiwear Metallurgy Centrifugal Flow Fan 0

Heavy Duty Stainless Steel Antiwear Metallurgy Centrifugal Flow Fan 1
