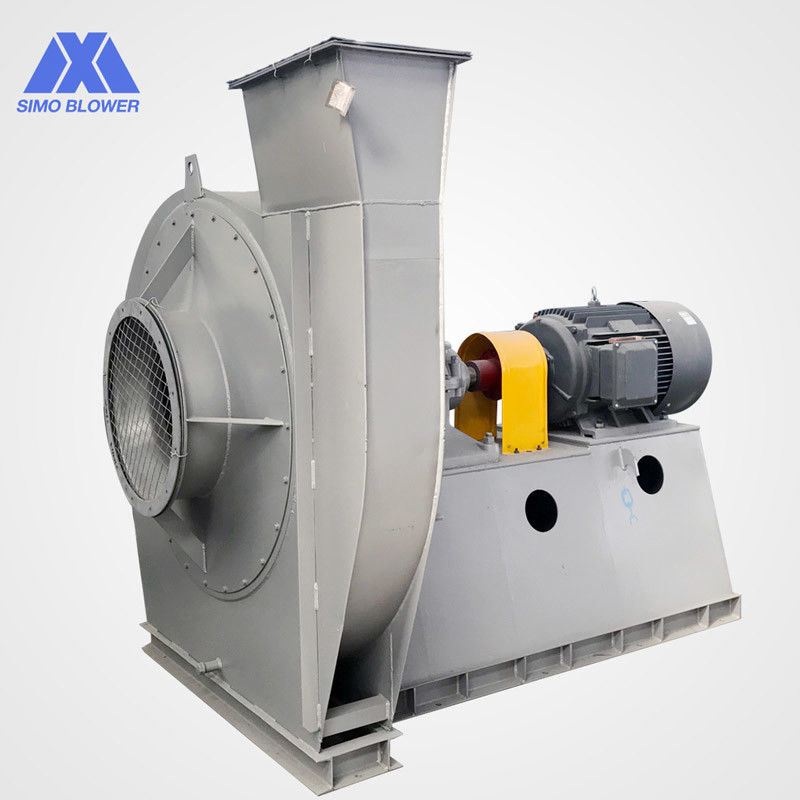

Alloy Steel High Air Flow Industrial Boiler SA Centrifugal Flow Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 9-08
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Feature: High Performance
Lubrication: Oil Bath Lubrication Motor Type: Three Phase AC Motor
Bearing Type: Rolling Bearing Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung
High Light:

Boiler SA Centrifugal Flow Fan

,

Alloy Steel Centrifugal Flow Fan

,

Boiler SA industrial centrifugal fans

Alloy Steel High Air Flow Industrial Boiler SA Centrifugal Flow Fan

Introduction



The 9-08 series high pressure fan is generally used for forging furnace and high pressure forced ventilation, and can be widely used to transport materials, transport air and non-corrosive, non-self-igniting, non-viscous substances gas.

The temperature of the medium generally does not exceed 50 ° C (maximum not more than 80 ° C). The dust and hard particles contained in the medium are not more than 150 mg/m3.

For flammable and explosive gas transportation, the impeller can be processed with aluminum alloy to prevent sparks during operation.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
9-08 7.1D 2900 1063512427 1229219360 75110
8D 14502900 324915955 879227696 18.5200
9D 1450 41814869 1251819717 3045
10D 1450 50656143 1717230052 5575
11.2D 9601450 30317747 1597342221 30132
12.5D 9601450 34509713 2220658695 45250
14D 9601450 434112285 3119782463 75400
16D 9601450 569616250 46569123090 185850


FAQ



1.Q: What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow rate(m3/h), Total pressure(Pa) or Static pressure(Pa), Inlet temperature(°C), Voltage and frequency on the working site.



2. Q:What is your delivery time?
A:15-35workdays, depending on the model of the fan.



3.Q:Are you manufacturer or trading company?
A:We are the professional manufacturer of centrifugal fans , over 65 years production experience and sales experience.



4.Q:What's your MOQ?
A:The MOQ is 1set,but larger quantity, lower price.



5.Q: What’s your warranty?
A: 12 months after arrival of the goods on site.



6.Q:How do you control the product's quality?
A:All the products have quality testing and dynamic balance before delivery.



Application



Centrifugal fan is applied in industrial boiler, (centrifugal fan can be applied in industrial boiler,) it also can be applied in industrial kilns, blast furnace, Industrial waste heat recovery device, Electrolytic aluminium production line air purification system and other industrial work environment.



Alloy Steel High Air Flow Industrial Boiler SA Centrifugal Flow Fan 0

Alloy Steel High Air Flow Industrial Boiler SA Centrifugal Flow Fan 1

Alloy Steel High Air Flow Industrial Boiler SA Centrifugal Flow Fan 2
