Place of Origin: | Henan China |
---|---|
Brand Name: | SIMO |
Certification: | CE, ISO9001:2008,TUV |
Model Number: | SIMO Blower 6-06 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiable |
Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
Delivery Time: | 15-35 Days |
Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
Supply Ability: | 500 Sets Per Month |
Impeller Test: | Ultrasonic Flaw Detection | System Type: | Single Inlet, Overhang Type |
---|---|---|---|
Impeller Support: | SWSI (Single Width, Single Inlet), Impeller Overhung | Power Source: | Three Phase AC Motor |
Bearing Cooling: | Air Cooling Or Circulating Water Cooling | Lubrication: | Oil Bath Lubrication |
High Light: | Materials Drying High Temperature Centrifugal Fan,Long Life High Temperature Centrifugal Fan,Materials Drying high pressure blower fan |

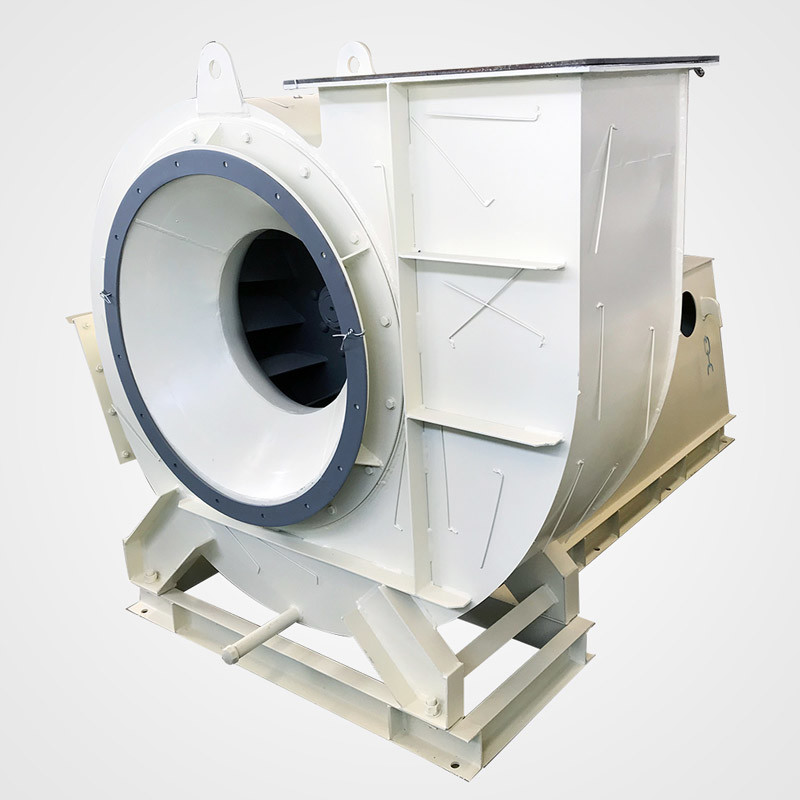

Materials Drying Long Life Wear Resistant High Temperature Centrifugal Fan
Introduction
The 6-06 series dust exhaust centrifugal fan has the characteristics of low dust accumulation and wear resistant.
It is suitable for discharging gas containing dust, wood chips and finely divided fibers (If it contains hard particles, a dust removal device must be installed in front of the fan.), it can also be used as a general ventilator for ventilation.
Product features
1.It can output higher outlet pressure and provide more gas flow at the same time, low noise.
2. The fan speed can be flexibly set by matching different belt pulley diameters to make the fan run at the highest efficiency point and reduce energy waste.
3. Motor slide guide can be provided for convenient belt tensioning to reduce energy loss caused by belt slack.
Technical specifications
series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
---|---|---|---|---|---|
6-06 | 8D | 1450 | 1859~2745 | 11000~26400 | 15 ~ 22 |
9D | 1450 | 2353~3474 | 15700~37500 | 30 ~ 45 | |
10D | 1450 | 2905~4289 | 21500~51500 | 45 ~ 75 | |
11D | 960 ~ 1450 | 1541~5190 | 22700~68500 | 22 ~ 110 | |
12D | 960 ~ 1450 | 1834~6176 | 24600~89000 | 37 ~ 160 | |
13D | 960 ~ 1450 | 2152~7248 | 31200~113000 | 55 ~ 250 | |
14D | 960 ~ 1450 | 2496~8406 | 39000~141000 | 75 ~ 400 | |
15D | 730 ~ 1450 | 1657~9650 | 36600~172000 | 45 ~ 500 | |
16D | 730 ~ 1450 | 1885~10980 | 44300~211000 | 75 ~ 710 | |
17D | 730 ~ 960 | 2128~5433 | 53200~168000 | 90 ~ 280 | |
18D | 730 ~ 960 | 2386~6091 | 63100~199000 | 110 ~ 355 | |
19D | 730 ~ 960 | 2658~6787 | 74200~234000 | 160 ~ 500 | |
20D | 730 ~ 960 | 2946~7520 | 86700~273000 | 200 ~ 630 | |
21D | 580 ~ 960 | 2050~8290 | 79500~316000 | 200 ~ 800 | |
22D | 580 ~ 960 | 2250~9099 | 92200~363000 | 220 ~ 1000 | |
23.5D | 580 ~ 960 | 2567~10380 | 112000~443000 | 220 ~ 1400 | |
25D | 580 ~ 730 | 6794~6464 | 134000~406000 | 355 ~ 800 | |
26.5D | 480 ~ 730 | 2236~7633 | 132000~483000 | 220 ~ 1120 | |
28D | 480 ~ 730 | 2496~8522 | 156000~569000 | 315 ~ 1400 | |
29.5D | 480 ~ 730 | 2771 ~ 9460 | 183000~667000 | 400 ~ 2000 |
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
