Place of Origin: | Henan China |
---|---|
Brand Name: | SIMO |
Certification: | CE, ISO9001:2008,TUV |
Model Number: | SIMO Blower 6-05 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiable |
Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
Delivery Time: | 15-35 Days |
Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
Supply Ability: | 500 Sets Per Month |
Material: | Carbon Steel/Alloy Steel/Stainless Steel | Warranty: | 1 Year |
---|---|---|---|
After-sales Service Provided: | Field Installation, Commissioning And Training | Voltage: | 380V/415V/440V/660V/6KV/10KV |
Main Shaft: | High-strength Carbon Structural Steel | Motor Type: | Three Phase AC Motor |
High Light: | Cooling Material Handling Blower,V-Belt Driven Material Handling Blower,V-Belt driven material handling fan |

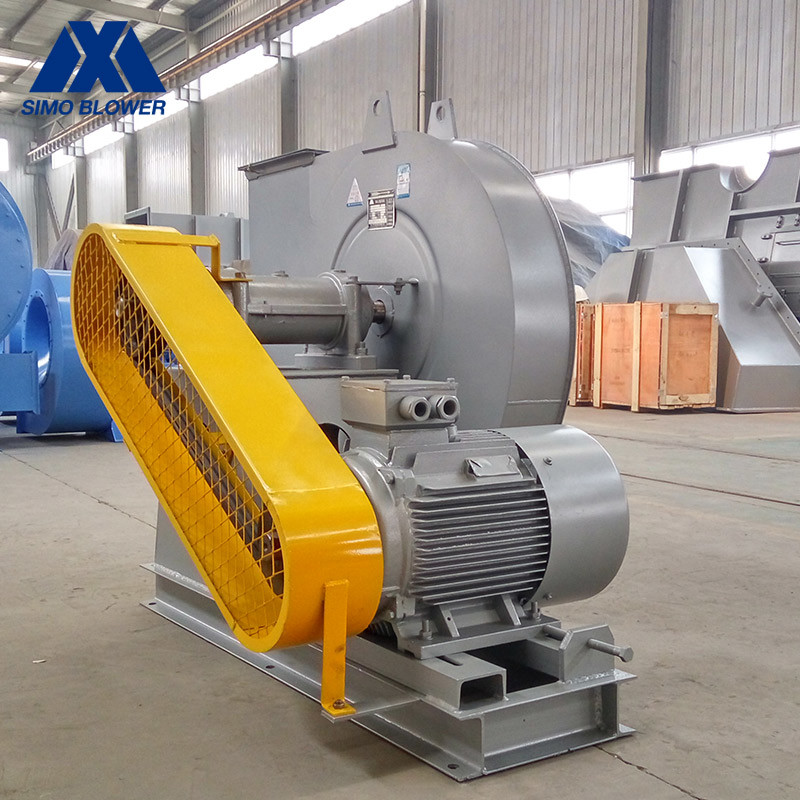

Stainless Steel V-Belt Driven Large Capacity Cooling Material Handling Blower
Introduction
The 6-05 medium-pressure series fan can meet the performance requirements of large flow and high pressure at the same time, and has the characteristics of high efficiency and low noise. It is a series centrifugal fan products with a wide range of performance.
The designed max full pressure efficiency is higher than 80% new series boiler ventilation fans and induced draft fans with the low noise.
Technical data
series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
---|---|---|---|---|---|
6-05 | 6C | 2000~2880 | 2079~5884 | 1598~4375 | 3~11 |
7C | 1680~2880 | 8012~5864 | 3655~6948 | 4~18.5 | |
8C | 1500~2880 | 2079~10474 | 2842~10371 | 4~37 |
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
