| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 9-08 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Application: | Industrial Ventilation | Material: | Carbon Steel/Alloy Steel/Stainless Steel |
|---|---|---|---|
| Motor Type: | Three Phase AC Motor | After-sales Service Provided: | Field Installation, Commissioning And Training |
| Impeller Support: | SWSI (Single Width, Single Inlet), Impeller Overhung | Power Source: | Three Phase AC Motor |
| High Light: | Foundry Stainless Steel Blower,Single Inlet Stainless Steel Blower,Foundry SS Blower |
||

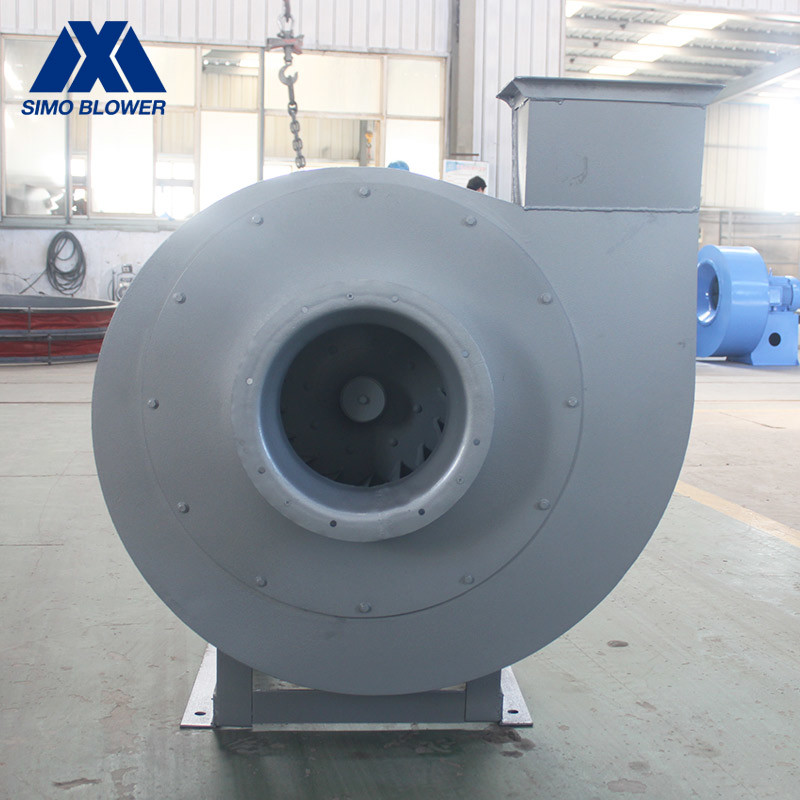

AC Motor Long Lifetime Anti-Explosion Furnace Stainless Steel Blower Fan
Introduction Of Centrifugal Fan
The 9-08 series high pressure fan is generally used for forging furnace and high pressure forced ventilation, and can be widely used to transport materials, transport air and non-corrosive, non-self-igniting, non-viscous substances gas.
The temperature of the medium generally does not exceed 50 ° C (maximum not more than 80 ° C). The dust and hard particles contained in the medium are not more than 150 mg/m3.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 9-08 | 4A | 2900 | 3253～3597 | 824～1704 | 2.2～3 |
| 4.5A | 2900 | 4112～4603 | 1174～2504 | 4～5.5 | |
| 5A | 2900 | 5080～5697 | 1610～3488 | 7.5～11 | |
| 5.6A | 2900 | 6400～7182 | 2262～4901 | 11～15 | |
| 6.3A | 2900 | 8148～9149 | 3220～6978 | 18.5～30 | |
| 7.1A | 2900 | 10426～11717 | 4610～9988 | 37～55 |
Product Features
1. The fan system running at normal temperature with an impeller diameter of less than 1400 mm does not require additional configuration of bearing cooling device, which reduces the user's investment and maintenance workload.
2. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.
3.The fan is made of high quality carbon steel, and can also use stainless steel or other metal materials according to customer requirements.
4. Running test and vibration value detection after the production is completed, the fan operation is reliable.
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
