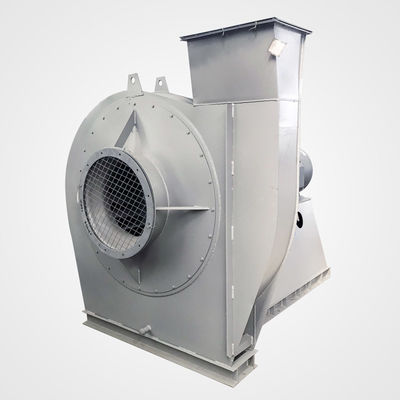

High Pressure Forward Materials Drying Stainless Steel Blower
Introduction Of Centrifugal Fan
The 9-08 series high pressure fan is generally used for forging furnace and high pressure forced ventilation, and can be widely used to transport materials, transport air and non-corrosive, non-self-igniting, non-viscous substances gas.
The temperature of the medium generally does not exceed 50 ° C (maximum not more than 80 ° C). The dust and hard particles contained in the medium are not more than 150 mg/m3.
Technical data
series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
---|---|---|---|---|---|
9-08 | 7.1D | 2900 | 10635~12427 | 12292~19360 | 75~110 |
8D | 1450~2900 | 3249~15955 | 8792~27696 | 18.5~200 | |
9D | 1450 | 4181~4869 | 12518~19717 | 30~45 | |
10D | 1450 | 5065~6143 | 17172~30052 | 55~75 | |
11.2D | 960~1450 | 3031~7747 | 15973~42221 | 30~132 | |
12.5D | 960~1450 | 3450~9713 | 22206~58695 | 45~250 | |
14D | 960~1450 | 4341~12285 | 31197~82463 | 75~400 | |
16D | 960~1450 | 5696~16250 | 46569~123090 | 185~850 |
Product Features
1.The fan can output higher gas pressure, and can provide more gas flow at the same time, low noise.
2. In the case of using the common base, the installation is very simple and basically does not require the support of professional technicians.
3. The motor shaft is elastically connected with the drive shaft. It is not necessary to tighten the belt or replace the belt frequently, and the maintenance workload is small.
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
