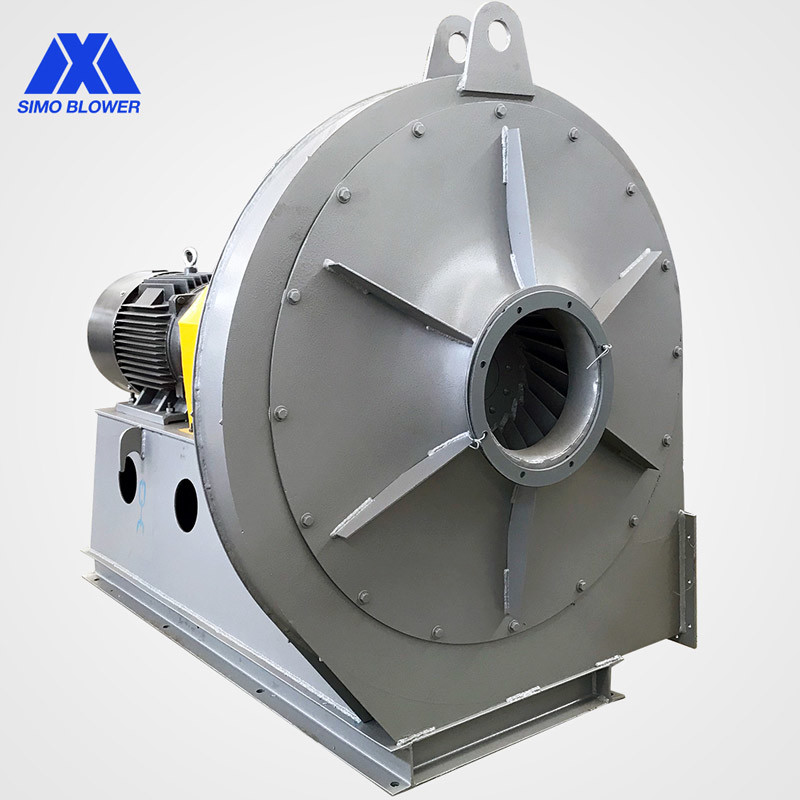

16680~17631Pa Stainless Steel Blower Backward Coupling Driving Furnace

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 9-03
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Material: Carbon Steel/Alloy Steel/Stainless Steel Voltage: 380V/415V/440V/660V/6KV/10KV
Motor Type: Three Phase AC Motor Lubrication: Oil Bath Lubrication
Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung Power Source: Three Phase AC Motor
High Light:

17631pa Stainless Steel Blower

,

16680pa Stainless Steel Blower

,

Coupling Driving furnace blower fan

High Pressure Backward Coupling Driving Furnace Stainless Steel Blower



Introduction Of Centrifugal Fan



9-03 series fan-type iron furnace special high-pressure centrifugal fan, is suitable for IL/h, 2L/h, 3L/h, 3L/h, 7L/h melting rate of iron furnace blast performance requirements.

The fan can also be used as the blast for various furnace forging furnaces.

It is also suitable for conveying air and non-corrosive, non-self-igniting, non-viscous materials or light powder/debris/short fiber materials.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
9-03 8D 2950 1668017631 30198117 3755
9D 2950 2134822314 432611632 75110



Product Features



1. It can output high pressure and is suitable for any industrial occasion where high pressure & normal temperature gas is required.

2. The energy transfer efficiency is high, the energy of the motor is directly applied to the impeller, and there is no energy consumption during the transfer.

3. The motor uses high-efficiency and energy-saving motors from China's leading motor manufacturers (and can also install branded motors required by users), with reliable quality and lower energy consumption.
