Coupling Driving 810000m3/H Stainless Steel Blower Low Pressure Sintering Machine

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 4-10
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Material: Carbon Steel/Alloy Steel/Stainless Steel Warranty: 1 Year
Feature: High Performance Lubrication: Oil Bath Lubrication
After-sales Service Provided: Field Installation, Commissioning And Training Motor: SIEMENS/ABB/By Your Demand
High Light:

810000m3/H Stainless Steel Blower

,

7218Pa Stainless Steel Blower

,

810000m3/H induced draught fan

Coupling Driving Low Pressure Sintering Machine Stainless Steel Blower



Introduction Of Centrifugal Fan



G4-10 and Y4-10 series ventilation and induced draft fans are suitable for the ventilation and induced draft fan systems of 2~670T/h steam boilers in thermal power plants.

It can also be used for mine ventilation and general ventilation without other special requirements; Mainly used to meet the needs of large air flow applications, low noise and high efficiency.

They can transport clean gas, dusty gas, flammable gas, corrosive gas, powder or granular materials at normal temperature or high temperature.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
4-10 8D 1450 2104~1400 16156~30993 18.55
9D 960 ~ 1450 775 ~ 2668 15229 ~ 44128 11 ~ 37
10D 730 ~ 1450 553 ~ 3301 15886 ~ 60533 7.5 ~ 55
11D 730 ~ 1450 669 ~ 4003 21144 ~ 80570 11 ~ 90
12D 730 ~ 1450 797 ~ 4777 25661 ~ 104600 15 ~ 132
14D 730 ~ 1450 1086 ~ 6541 43591 ~166100 37 ~ 315
16D 580 ~ 960 895 ~ 3709 51699 ~ 164150 45 ~ 185
18D 580 ~ 960 1133 ~ 4710 73610 ~ 233730 75 ~ 280
20D 580 ~ 960 1400 ~ 5837 100970 ~ 320610 110 ~ 520
22D 480 ~ 960 1216 ~ 6865 116000 ~ 434000 140 ~ 850
25D 480 ~ 730 1579 ~ 5138 171000 ~ 484000 165 ~ 700
28D 375 ~ 730 1205 ~ 6400 187000 ~ 680000 320 ~ 1250
29.5D 596 ~ 745 3236 ~ 7218 348000 ~ 810000 800 ~ 1600


Product Features


1. The impeller is annealed to eliminate the internal stress generated during welding, ensuring that the impeller does not undergo creep and cracks.

2. The weld of the impeller and the main shaft are ultrasonic flaw detection to ensure that there are no welding defects and material defects to ensure strength.

3. The impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.

4. There are a variety of accessories to choose from.



FAQ



1,Q: What’s the MOQ of your company?

A: The MOQ is 1set.

2,Q: How long is the delivery time?

A :     A:5-35 days.

3,Q : What’s your payment terms?

   A : T/T, L/C, or Negotiable.

4,Q: What’s your warranty?
  A: 1 year.
5,Q: Is your company factory or trade company?

  A: We have our own factory, our type is factory +trade.

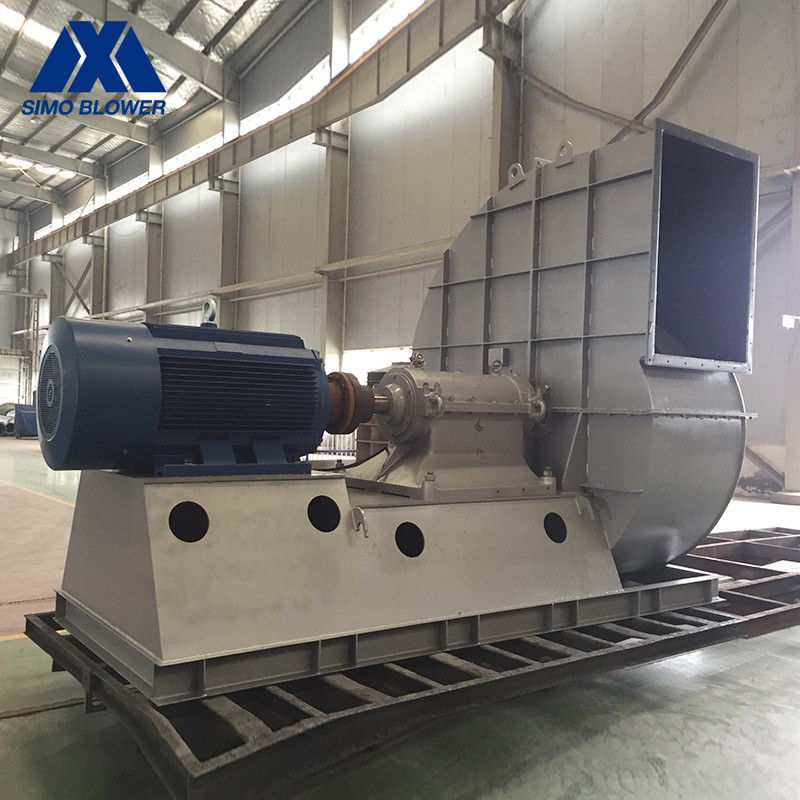

Coupling Driving 810000m3/H Stainless Steel Blower Low Pressure Sintering Machine 0

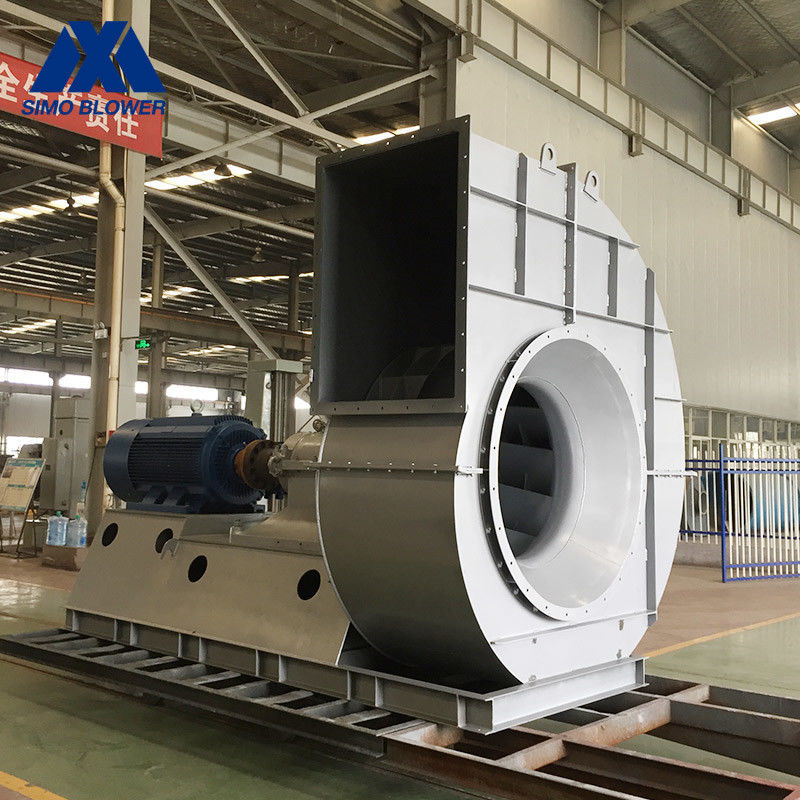

Coupling Driving 810000m3/H Stainless Steel Blower Low Pressure Sintering Machine 1Coupling Driving 810000m3/H Stainless Steel Blower Low Pressure Sintering Machine 2
