| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 4-14 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Material: | Carbon Steel/Alloy Steel/Stainless Steel | Warranty: | 1 Year |
|---|---|---|---|
| After-sales Service Provided: | Field Installation, Commissioning And Training | Power Source: | Three Phase AC Motor |
| Color: | Customer's Requirement | Current Type: | AC |
| High Light: | Boiler Material Handling Blower,Single Inlet Material Handling Blower,Single Inlet boiler centrifugal fan |
||

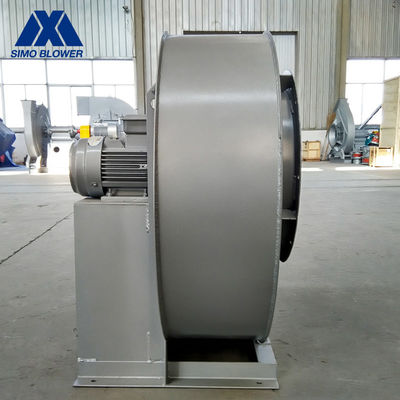

Single Inlet High Air Flow Biomass Boiler Material Handling Blower
Introduction
The 4-14 series centrifugal fan is suitable for indoor ventilation in general factories and large buildings.
It can be used to input gas as well as to output gas.
The gas delivered by the 4-14 series fan should be no more than 80 °C air and other gases that are not self-igniting and are not harmful to the human body and are not corrosive to steel materials. No viscous substances are allowed in the gas, and the dust and hard particles contained in the gas are not more than 150 mg/m3.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 4-14 | 2.8A | 1450 ~ 2900 | 166 ~ 970 | 565 ～2262 | 0.55 ~ 1.1 |
| 3.15A | 1450 ~ 2900 | 215 ~ 1245 | 912 ～3435 | 0.55 ~ 1.5 | |
| 3.55A | 1450 ~ 2900 | 274 ~ 608 | 1354～5013 | 0.55 ~ 3 | |
| 4A | 1450 ~ 2900 | 353 ~ 2069 | 1992～7281 | 0.75 ~ 4 | |
| 4.5A | 1450 ~ 2900 | 460 ~ 2657 | 2895～40585 | 1.1 ~ 7.5 | |
| 5A | 1450 ~ 2900 | 578 ~ 3314 | 4025～14490 | 2.2 ~ 15 |
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
