| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 9-10 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Application: | Industrial Ventilation | Feature: | High Performance |
|---|---|---|---|
| Bearing: | SKF/FAG/By Your Demand | Current Type: | AC |
| Power Source: | Three Phase AC Motor | Impeller Test: | Ultrasonic Flaw Detection |
| High Light: | Smelting Furnace Centrifugal Flow Fan,Aluminium Alloyed Centrifugal Flow Fan,Smelting Furnace centrifugal blower |
||
Introduction

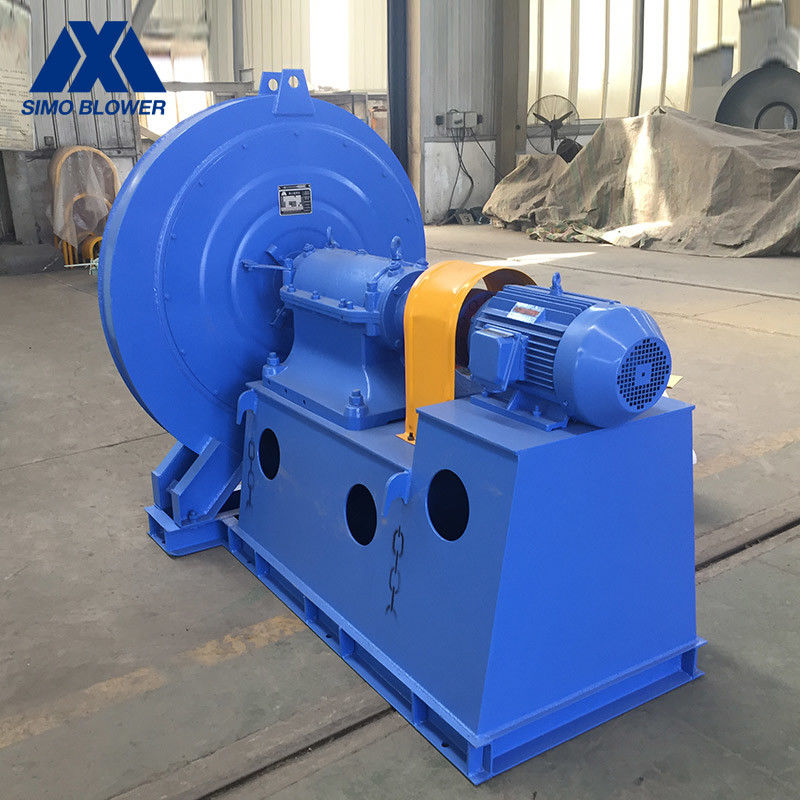

The 9-10 series high pressure fan is generally used for forging furnace and high pressure forced ventilation and widely used for material transportation.
It is suitable for conveying air and non-corrosive, unnatural and non-viscous gases.
The temperature of the medium is generally not more than 80°C, and the dust and hard fine particles contained in the medium are not more than 150mg/m3.
The fan can also be used in cement kiln decomposition process, steel smelting and other special occasions use of high temperature fan (use heat resistant & high strength material).
The 9-10 series high-pressure centrifugal fan is the latest developed high-efficiency and energy-saving product, whose performance fully meets the aerodynamic performance of general fan 9-08 series, and has the characteristics of high efficiency, low noise, flat performance curve, large flow regulation range and wide efficient area.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 9-10 | 8D | 1450～2900 | 3231～15034 | 3297～14287 | 7.5～110 |
| 9D | 1450 | 4101～4597 | 4695～10717 | 15～22 | |
| 10D | 1450 | 4958～5840 | 6440～15455 | 30～37 | |
| 11.2D | 960～1450 | 2705～7364 | 5990～21713 | 15～75 | |
| 12.5D | 960～1450 | 3975～9229 | 8327～30186 | 22～110 | |
| 14D | 960～1450 | 4249～11668 | 11699～42409 | 37～220 | |
| 16D | 960～1450 | 5575～15425 | 17463～63305 | 75～315 |
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
Application
Centrifugal fan is applied in industrial boiler, (centrifugal fan can be applied in industrial boiler,) it also can be applied in industrial kilns, blast furnace, Industrial waste heat recovery device, Electrolytic aluminium production line air purification system and other industrial work environment.
