High Pressure Coupling Driven Air Supply Centrifugal Flow Fan Alloy Steel

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 9-03
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Feature: High Performance
Material: Carbon Steel/Alloy Steel/Stainless Steel Current Type: AC
Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung Noise: Optional
High Light:

Air Supply Centrifugal Flow Fan

,

Coupling Driven Centrifugal Flow Fan

,

Coupling Driven air supply fan

High Pressure Alloy Steel Coupling Driven Air Supply Centrifugal Flow Fan

Introduction



1. It can output very high pressure and can work at higher medium temperature, suitable for any industrial occasion where high pressure & high temperature gas needs to be delivered.

2. In the case of using the common base , the installation is very simple and basically does not require the support of professional technicians.

3. The bearing box is reserved with the temperature and vibration sensor installation position, which can conveniently install the fan operation monitoring device.

4. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.

5. Customized design according to customer performance requirements, and optimized by CFD technology, the energy consumption is lower than similar models.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
9-03 4D 2900 22852452 32976594 5.57.5
4.5D 2900 28933060 46959389 1115
5D 2900 35703854 644012880 1522
5.6D 2900 44824805 904818095 3045
6.3D 1450 14221500 644112882 7.511
7.1D 1450 18041942 922018439 1118.5
8D 1450 22852462 1318926378 18.530
9D 1450 28933099 1877937558 3755
10D 1450 35703854 2576042933 5590
11.2D 9601450 19614835 2396172381 30160
12.5D 730960 14122638 2532966620 2290
14D 730960 17753305 3558693596 45160
16D 730960 23144295 53120139712 75280


FAQ



1,Q: What’s the MOQ of your company?

  A: The MOQ is 1set.

2,Q: How long is the delivery time?

A :        A:5-35 days.

3,Q : What’s your payment terms?

     A : T/T, L/C, or Negotiable.

4,Q: What’s your warranty?
     A: 1 year.
5,Q: Is your company factory or trade company?

     A: We have our own factory, our type is factory +trade.



Application



Centrifugal fan is applied in industrial boiler, (centrifugal fan can be applied in industrial boiler,) it also can be applied in industrial kilns, blast furnace, Industrial waste heat recovery device, Electrolytic aluminium production line air purification system and other industrial work environment.

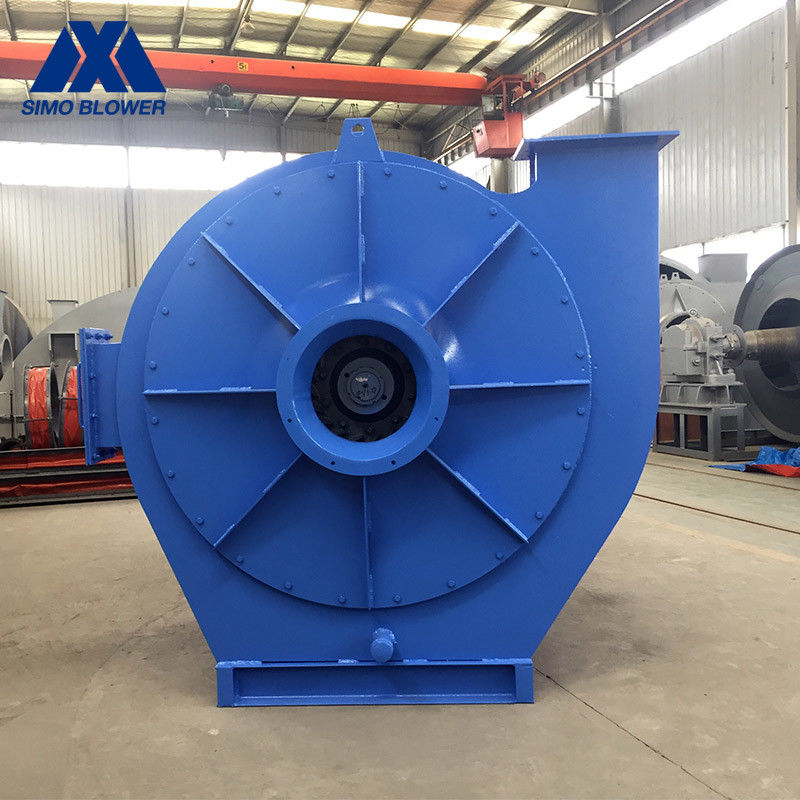

High Pressure Coupling Driven Air Supply Centrifugal Flow Fan Alloy Steel 0

High Pressure Coupling Driven Air Supply Centrifugal Flow Fan Alloy Steel 1
