Place of Origin: | Henan China |
---|---|
Brand Name: | SIMO |
Certification: | CE, ISO9001:2008,TUV |
Model Number: | SIMO Blower 8-17 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiable |
Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
Delivery Time: | 15-35 Days |
Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
Supply Ability: | 500 Sets Per Month |
Feature: | High Performance | System Type: | Single Inlet, Overhang Type |
---|---|---|---|
Medium: | Clean Air/Dusty Air | Warranty: | 1 Year |
Bearing Cooling: | Air Cooling Or Circulating Water Cooling | Lubrication: | Oil Bath Lubrication |
High Light: | 20250pa High Temperature Fans And Blowers,Backward Curved High Temperature Fans And Blowers,20250pa high temp blower |

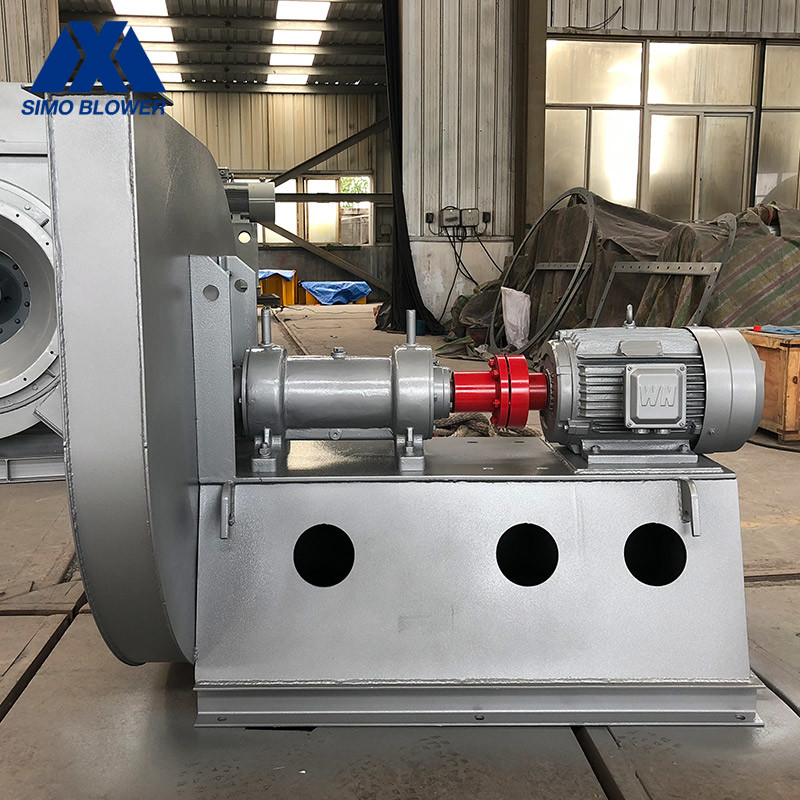

Long Life Backward Curved Corrosion Resistant High Temperature Centrifugal Fan
Introduction
The 8-17 series high-pressure small-flow fan is designed for applications requiring high pressure.
Under the premise of ensuring a certain amount of air, the full pressure can reach the high pressure requirement.
It is mainly used for blasting furnace blast and other forced air supply, and can also be used for tunnels to exhaust or supply air through hard pipes.
The fans are divided into general type, explosion-proof type, anti-corrosion type and high temperature type.
Product features
1. It can output high outgas pressure and can work at higher medium temperature, suitable for any industrial occasion where high pressure & high temperature gas needs to be delivered.
2. In the case of common base, the installation is very simple and requires little support from a professional technician.
3. The bearing housing is reserved for the installation position of the temperature and vibration sensors, and the fan operation monitoring device can be conveniently installed.
4. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.
5. Customized design according to customer's performance requirements, and optimized by CFD technology, the energy consumption is lower than similar models.
Technical specifications
series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
---|---|---|---|---|---|
8-17 | 7.1D | 2900 | 10728~11973 | 768~2919 | 11~18.5 |
8D | 2930 | 14297~15680 | 1110~4219 | 22~37 | |
9D | 2930 | 18308~20250 | 1591~6019 | 37~55 |
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
