Sintering Heat Dissipation HG785 Steel 2043pa Power Plant Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 6-12
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Motor Type: Three Phase AC Motor Mounting: Free Standing
Material: Carbon Steel/Alloy Steel/Stainless Steel Blade: Forward / Backward/Backward Curved
Bearing: SKF/FAG/By Your Demand Bearing Cooling: Air Cooling Or Circulating Water Cooling
High Light:

2043pa Power Plant Fan

,

HG785 Steel Power Plant Fan

,

2043pa high pressure centrifugal blower

Sintering HG785 Alloyed Steel Heat Dissipation Power Plant Blower Fan



Introduction Of Centrifugal Fan



Centrifugal fans generally use single-side air intake and use single-stage impellers; those with large flow can be air-intaken on both sides and use two back-to-back impellers, which are also called double-suction centrifugal fans.



The principle of gas discharge: When the gas between the blades of the centrifugal fan rotates, the kinetic energy obtained by the centrifugal force is discharged from the periphery of the impeller, guided by the volute-shaped casing, so that it flows to the outlet of the ventilator, thereby being in the center of the impeller. Negative pressure is formed in the part, so that the external airflow continuously flows in and supplements, so that the fan can discharge the gas.



Product Advantages



1. Good ventilation effect: Centrifugal fan is especially suitable for pipe exhaust or air supply, and can be used in places where there is no corrosive, flammable and explosive gas, which can achieve good ventilation effect.

2. Strong corrosion resistance: the surface of centrifugal fan is sprayed, which has strong oxidation resistance and is not easy to rust. The casing and impeller are made of high-quality steel plates, which makes the centrifugal fan very strong and durable.

3. SIMO Blower uses high-quality raw materials, thick materials, or stainless steel plates,all formed at one time.

4.The parts are closely matched and have good sealing performance to ensure the output pressure will not be reduced.

5.The impeller is calibrated by high standards for dynamic balance to ensure stable operation of the fan.

6.Running test and vibration value detection after the production is completed, the fan operation is reliable.

7.There are a variety of part options to choose from.



Technical data



series model

Heat Dissipation Power Plant Blower Fan

Rotation Speed
(r/min)

Heat Dissipation Power Plant Blower Fan

Total Pressure
(Pa)

Heat Dissipation Power Plant Blower Fan

Air Capacity
(m³/h)

Heat Dissipation Power Plant Blower Fan

Power
(kW)

6-12 3.15D 16003150 3541880 7553323 0.753
4D 12502500 3451933 11845495 0.754
5D 14002000 6751953 24878623 2.27.5
6.3D 10001600 3441985 177613799 1.111
8D 11201400 5471517 355412074 37.5
10D 8001250 3501953 284322075 1.515
12.5D 4001000 3502043 740256902 2.222



FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.



2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.



3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

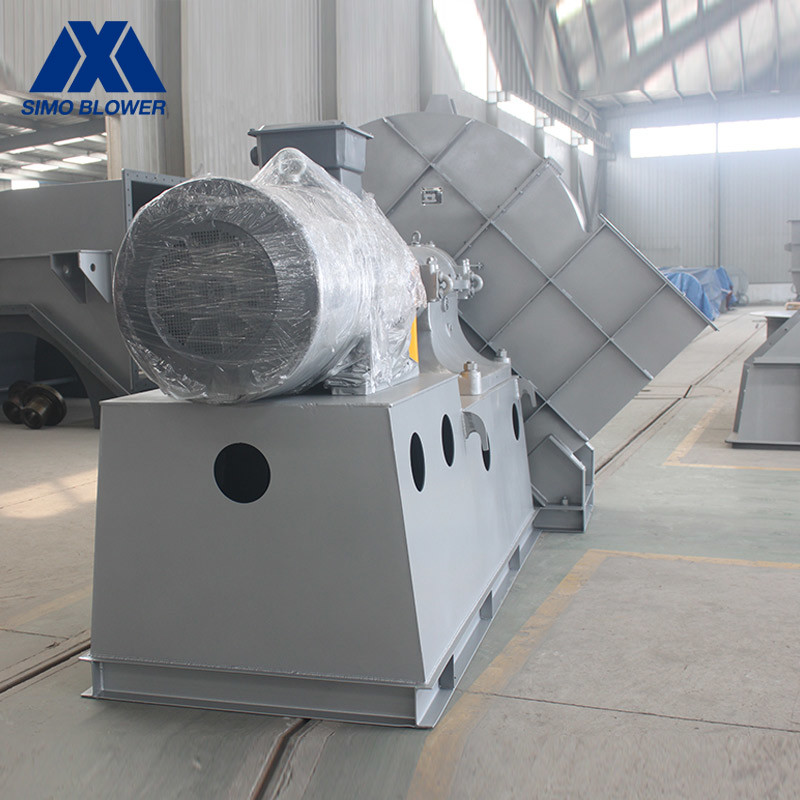

Sintering Heat Dissipation HG785 Steel 2043pa Power Plant Fan 0
