Q345 Extractor SWSI Material Handling Fan Fragment Material Delivery

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 7-05
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Color: Customer's Requirement Motor Type: Three Phase AC Motor
Blade: Forward / Backward/Backward Curved Bearing: SKF/FAG/By Your Demand
Impeller Test: Ultrasonic Flaw Detection Lubrication: Oil Bath Lubrication
High Light:

Q345 Material Handling Fan

,

SWSI Material Handling Fan

,

400mm Material Handling Fan

Q345 Fragment Material Delivery High Wear Resistance Extractor Fan



Introduction



At present, there are many series of boilers, and the situation of burning coal quality is quite different, after installing dust removal equipment and waste heat utilization equipment, insufficient pumping force affects normal operation.

In order to overcome the insufficient pumping force due to the above reasons, the furnace has a positive pressure, which affects the combustion and normal operation of the boiler.

Therefore, various types of boiler induced draft fans have been designed and manufactured for the design and manufacture of air volume, wind pressure and boiler matching efficiency. Provide each user to choose an application.



Application



Q345 Fragment Material Delivery High Wear Resistance Extractor Centrifugal fan is widely used in the cement industry, building materials industry, environmental protection industry, metallurgical industry, power industry projects such as large-scale dust collector, industrial boilers, ventilation systems, cooling.



Technical data



Extractor Fan
PRODUCT PARAMETERS
Application
Temperature Normal temperature air, Hot air

Air composition

Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials
Performance
Impeller diameter 400~3000

mm

Speed of mainshaft 3000 rpm
Pressure range 3160~16540 Pa
Flow range

2473~484756

m3/h
Structure
Blade Backward
Impeller support SWSI (Single Width, Single Inlet), Impeller overhung.
Drivetrain Direct, Coupling, V-belt Can assign
Lubrication Oil bath lubrication
Bearing cooling Air cooling, Water cooling, Oil cooling
System
configuration
Motor ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand…



Can assign

Impeller

Q235, Q345, SS304, SS316, HG785, DB685...

Casing, Air inlet cone,

Air inlet damper

Q235, Q345, SS304, SS316, HG785, DB685...
Main shaft 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel...
Bearing FAG, SKF, NSK, ZWZ…
Optional
components
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator,
Inlet & Outlet flange,  Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc.



Advantages and Features



1.The fan pressure is high, therefore it is especially suitable for 1-20t/h industrial boilers, which equipped with spiral pipes and multi-tube dust collector.

2.The induced draft fan is made into a single suction, different impeller diameter from 400mm to 3000mm.

3.The position of the air outlet of the fan is expressed by the angle of the air outlet of the casing."Left" and "Right" can be made into different angles.

4.Fan drive mode is V-belt drive, coupling drive, double support type.

5.The fan has high efficiency, high total pressure, low noise, flat performance curve, wide economical use area, and adopts backward plate type blades. The efficiency of the fan at the best working point is 86.5%, and the noise index( than A sound Level) is Ls=11.5dB.



FAQ



1,Q: What’s the MOQ of your company?

A: The MOQ is 1set.

2,Q: How long is the delivery time?

A :     A:5-35 days.

3,Q : What’s your payment terms?

   A : T/T, L/C, or Negotiable.

4,Q: What’s your warranty?
   A: 1 year.
5,Q: Is your company factory or trade company?

   A: We have our own factory, our type is factory +trade.

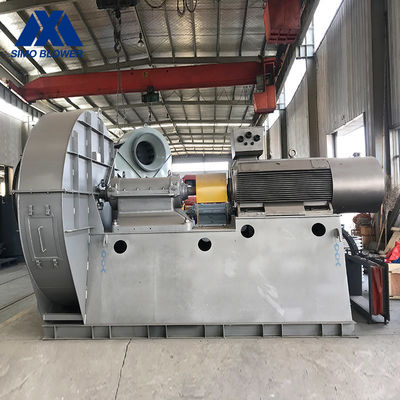

Q345 Extractor SWSI Material Handling Fan Fragment Material Delivery 0

Q345 Extractor SWSI Material Handling Fan Fragment Material Delivery 1

Q345 Extractor SWSI Material Handling Fan Fragment Material Delivery 2

Q345 Extractor SWSI Material Handling Fan Fragment Material Delivery 3

Q345 Extractor SWSI Material Handling Fan Fragment Material Delivery 4

Q345 Extractor SWSI Material Handling Fan Fragment Material Delivery 5

Q345 Extractor SWSI Material Handling Fan Fragment Material Delivery 6
