| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 6-03 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Main Shaft: | High-strength Carbon Structural Steel | Bearing Cooling: | Air Cooling Or Circulating Water Cooling |
|---|---|---|---|
| Lubrication: | Oil Bath Lubrication | System Type: | Single Inlet, Overhang Type |
| Medium: | Clean Air/Dusty Air | Power Source: | Three Phase AC Motor |
| High Light: | Anti Abrasive Air Circulation Fan,Q345 Air Circulation Fan,Garbage Incinerator Air Circulation Fan |
||

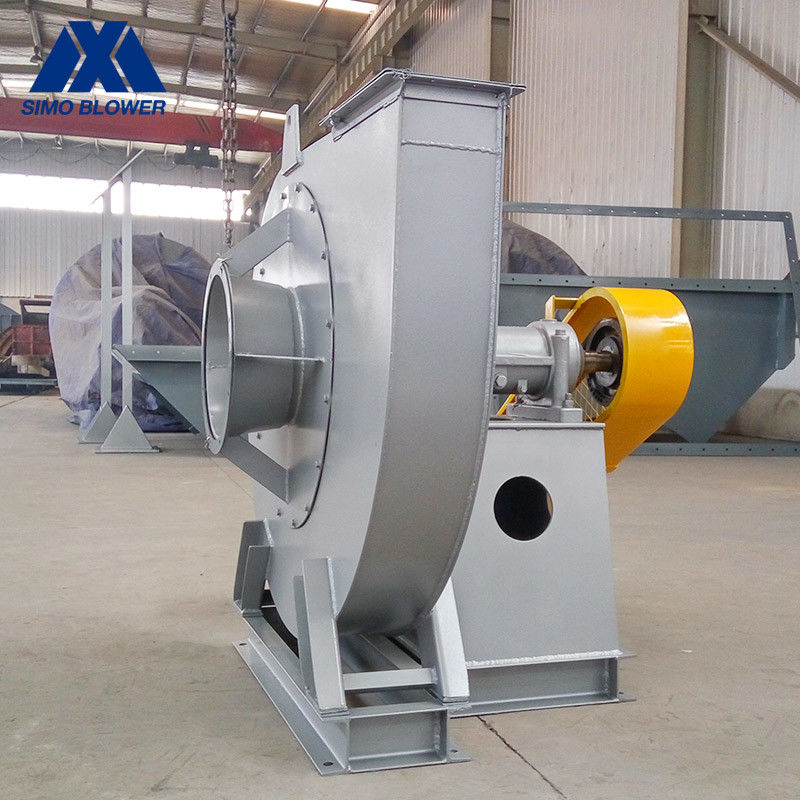

Garbage Incinerator Q345 Anti Abrasive Air Circulation Fan Centrifugal
Introduction
This series fan can meet the performance requirements of large flow and high pressure at the same time, and has the characteristics of high efficiency and low noise. It is a series of centrifugal fans with a wide range of performance.
6-03 series medium pressure fans can be used to transport normal temperature or high temperature clean gas, dusty gas, flammable gas, corrosive gas, powder or granular materials, fiber materials, etc.
Mainly used in the industrial field, typical applications are: forced ventilation, forced cooling and heat dissipation, material drying, air purification equipment, industrial dust collector system, air filtration system, flue gas desulfurization, flue gas denitrification, boiler system, kiln system , air supply and induced draught system, industrial boiler primary air fan, secondary air fan, ventilation of various large-scale mill systems (cement mill, coal powder mill, industrial waste heat recovery device, ore powder sintering (sintering machine), Coke production (coking oven), pressurization or decompression sealing of industrial equipment, recovery of industrial waste gas, etc.
It is the most widely used fan series in the industrial field.
Technical specifications
|
Air Circulation Fan
PRODUCT PARAMETERS
|
|||
|
Air Circulation Fan
Application
|
Temperature | Normal temperature air, Hot air | |
|
Air composition |
Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials | ||
|
Air Circulation Fan
Performance
|
Impeller diameter | 400~2500 |
mm |
| Speed of mainshaft | ≤4000 | rpm | |
| Pressure range | 732~12086 | Pa | |
| Flow range |
585~141977 |
m3/h | |
|
Air Circulation Fan
Structure
|
Blade | Backward | |
| Impeller support | SWSI (Single Width, Single Inlet), Impeller overhung. | ||
| Drivetrain | Direct, Coupling, V-belt | Can assign | |
| Lubrication | Oil bath lubrication | ||
| Bearing cooling | Air cooling, Water cooling, Oil cooling | ||
|
Air Circulation Fan
System
configuration |
Motor | ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand… |
Can assign |
| Impeller |
Q235, Q345, SS304, SS316, HG785, DB685... |
||
|
Casing, Air inlet cone, Air inlet damper |
Q235, Q345, SS304, SS316, HG785, DB685... | ||
| Main shaft | 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel... | ||
| Bearing | FAG, SKF, NSK, ZWZ… | ||
|
Air Circulation Fan
Optional
components |
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator, Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc. |
||
Product features
1. It can output higher outlet pressure and provide more gas flow at the same time, low noise. Stable operation at higher media temperatures.
2. The variable inlet damper can be used to flexibly adjust the pressure and flow of the fan during operation. The variable frequency motor can also be selected to adjust the pressure and flow of the fan by changing the speed.
3. Bearing cooling method: according to gas temperature and operating environment conditions choose low-cost water-cooling method or oil-cooling method with good heat dissipation performance. For extremely high temperature operating conditions, can also be installed with an electronic cooler, absolute protection of the reliable operation of the fan system.
4. The material of impeller and main shaft, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature &high-strength alloy steel for different working conditions temperature and working speed, so that the impeller and main shaft at high temperature still maintain reliable strength.
5. For dusty gas, we can meet all kinds of working conditions from small amount of dust to large amount of dust. After special treatment, the hardness of blade surface can reach HRC60~70, which can extend the life of the impeller by more than 3 times.
6. The bearing housing is reserved for the installation position of temperature and vibration sensors, which can facilitate the installation of fan operation monitoring device.
7. Ultrasonic flaw detection on the welding seam and main spindle of the impeller to ensure that there are no welding defects or material defects and ensure the strength.
8. After running test and vibration value detection, the operation is reliable.
9. There are a variety of accessories to choose from.
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
