Dust Removal Air Blower 125kw Direct Drive Centrifugal Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 4-10
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month Dust Removal High Volume Low Pressure Air Blower Centrifugal Fan
Impeller: Dynamic Balanced Noise: Optional
Feature: High Performance Drivetrain: Direct/Coupling Driven/V-belt Driven
Bearing: SKF/FAG/By Your Demand Motor: SIEMENS/ABB/By Your Demand
High Light:

125kw Direct Drive Centrifugal Fan

,

direct dust removal centrifugal fan

,

blower direct drive centrifugal fan

Dust Removal High Volume Low Pressure Air Blower Centrifugal Fan



Application



Typical applications include: building ventilation, mine ventilation, smoke evacuation, drying, clinker cooling, transport of gas, transport of lightweight materials, blasting and drafting of industrial boiler systems, and supply of air to kiln systems/incinerator systems and induced air, air purification equipment, industrial dust collector systems, etc.

In addition to the industrial system, it is also frequently used in agriculture and civil applications and the most versatile range of centrifugal fans.



Product features



1. For the material of impeller and main shaft, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature resistant high-strength alloy steel under different working conditions temperature and working speed, so that the impeller and main shaft still maintains a reliable strength at high temperature.

2. Fan systems with impeller diameters less than 1400mm at normal temperature do not require additional bearing cooling devices, reducing users’ investment and maintenance.

3. The impeller is annealed to eliminate the internal stress generated during welding, ensuring that the impeller does not undergo creep and cracks.

4. The weld of the impeller and the main shaft are ultrasonic flaw detection to ensure that there are no welding defects and material defects to ensure strength.

5. The impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
4-10D 8D 1450 868 ~ 1303 16156 ~ 30993 11 ~ 15
9D 960 ~ 1450 481 ~ 1651 15229 ~ 44128 7.5 ~ 30
10D 730 ~ 1450 343 ~ 2041 15886 ~ 60533 5.5 ~ 37
11D 730 ~ 1450 415 ~ 2474 21144 ~ 80570 11 ~ 55
12D 730 ~ 1450 495 ~ 2949 27451 ~ 104600 11 ~ 110
14D 730 ~ 1450 674 ~ 4029 43591 ~166100 22 ~ 185
16D 580 ~ 960 555 ~ 2293 51699 ~ 164150 45 ~ 132
18D 960 703 ~ 2908 73610 ~ 233730 45 ~ 200
20D 580 ~ 960 868 ~ 3598 100970 ~ 320610 75 ~ 380
22D 480 ~ 960 755 ~ 4256 116000 ~ 434000 125 ~ 600
25D 480 ~ 730 981 ~ 3187 171000 ~ 484000 140 ~ 475
28D 480 ~ 730 1186 ~ 3969 59000 ~ 545000 400 ~ 1000
29.5D 596 ~ 745 2452 ~ 5423 348000 ~ 810000 630 ~ 1250





Advantages and Features



1. It can work stably at a high medium temperature, and can output a large gas flow with low noise when the pressure requirement is met.

2. The fan blade placement angle is optimized, more wear-resistant and longer service life.

3. The air damper can be used to flexibly adjust the pressure and flow of the fan during operation. It is also possible to select a variable frequency motor, with adjust the pressure and flow of the fan by changing the speed.

4. For the material of impeller and main shaft, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature resistant high-strength alloy steel under different working conditions temperature and working speed, so that the impeller and main shaft still maintains a reliable strength at high temperature.

5. Fan systems with impeller diameters less than 1400 mm at normal temperature do not require additional bearing cooling devices, reducing users’ investment and maintenance.

6. The impeller is annealed to eliminate the internal stress generated during welding, ensuring that the impeller does not undergo creep and cracks.

7. The weld of the impeller and the main shaft are ultrasonic flaw detection to ensure that there are no welding defects and material defects to ensure strength.

8. The impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.

9. There are a variety of accessories to choose from.



FAQ



1,Q: What’s the MOQ of your company?

 A: The MOQ is 1set.

2,Q: How long is the delivery time?

A :      A:5-35 days.

3,Q : What’s your payment terms?

    A : T/T, L/C, or Negotiable.

4,Q: What’s your warranty?
    A: 1 year.
5,Q: Is your company factory or trade company?

    A: We have our own factory, our type is factory +trade.

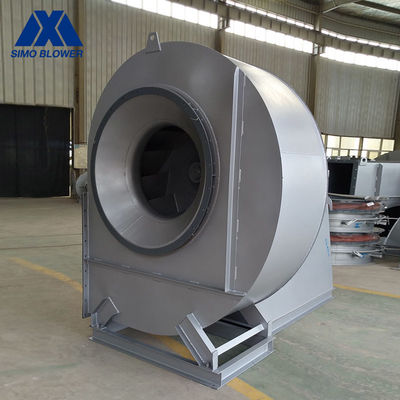

Dust Removal Air Blower 125kw Direct Drive Centrifugal Fan 0

Dust Removal Air Blower 125kw Direct Drive Centrifugal Fan 1

Dust Removal Air Blower 125kw Direct Drive Centrifugal Fan 2
