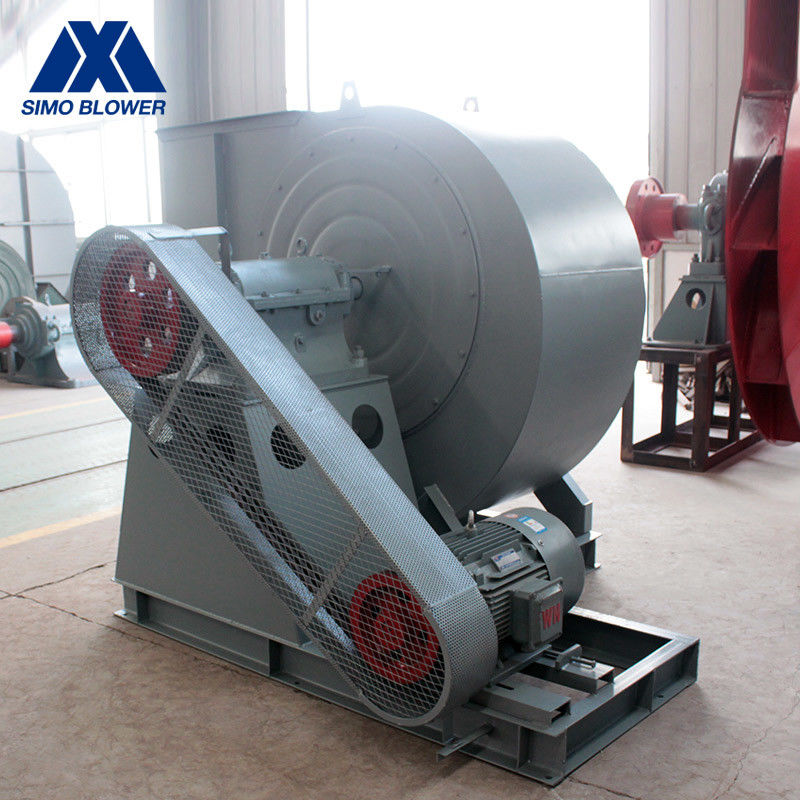

10KV Single Suction Smoke Exhaust Centrifugal Flow Fan V Belt Driven

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 7-07
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Feature: High Performance
Impeller: Dynamic Balanced Noise: Optional
Voltage: 380V/415V/440V/660V/6KV/10KV Color: Customer's Requirement
High Light:

single suction centrifugal flow fan

,

10KV Centrifugal Flow Fan

,

smoke exhaust centrifugal flow fan

Single Suction V-Belt Driven Smoke Exhaust Centrifugal Flow Fan

Introduction



The 7-07 series high-pressure centrifugal fan has a high output pressure, can transport normal temperature or high temperature various gases and various forms of materials, and also can be used in harsh working environments.

Such as conveying high temperature/harmful/dangerous gas, hard particles, powder, debris, fiber, forced ventilation, industrial dust collectors, air filtration systems, flue gas desulfurization, flue gas denitration, industrial boiler forced draft and induced draft fan, the material conveying of the various back kiln & calcining kiln, the induced draft of the smelting furnace and the casting furnace, combustion of blast furnace, coal injection of blast furnace, pressurized transportation of gas, etc.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
7-07 5C 3030 2982 ~ 3456 4486 ~ 8971 11 ~ 15
5.6C 2360 26232264 49099817 11
7.1C 1830 ~ 2450 2188 ~ 3862 775720771 15 ~ 30
8C 1910 35173034 1158223164 30
9C 1570 30022591 1355527111 30
10C 1470 ~ 1650 2806 ~ 4109 17410 36478 45 ~ 55


FAQ



1,Q: What’s the MOQ of your company?

  A: The MOQ is 1set.

2,Q: How long is the delivery time?

A :        A:5-35 days.

3,Q : What’s your payment terms?

     A : T/T, L/C, or Negotiable.

4,Q: What’s your warranty?
     A: 1 year.
5,Q: Is your company factory or trade company?

     A: We have our own factory, our type is factory +trade.



Application



Centrifugal fan is applied in industrial boiler, (centrifugal fan can be applied in industrial boiler,) it also can be applied in industrial kilns, blast furnace, Industrial waste heat recovery device, Electrolytic aluminium production line air purification system and other industrial work environment.



10KV Single Suction Smoke Exhaust Centrifugal Flow Fan V Belt Driven 0

10KV Single Suction Smoke Exhaust Centrifugal Flow Fan V Belt Driven 1
