16Mn Single Inlet Large Capacity Centrifugal Flow Fan Blower

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 5-11
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Feature: High Performance
Material: Carbon Steel/Alloy Steel/Stainless Steel After-sales Service Provided: Field Installation, Commissioning And Training
Current Type: AC Warranty: 1 Year
High Light:

Single Inlet Centrifugal Flow Fan

,

16Mn Centrifugal Flow Fan

,

single inlet centrifugal fan Blower

16Mn Single Inlet Large Capacity Centrifugal Flow Fan Blower



Introduction



This can use different speeds to meet the requirements of various dust collectors in the same tonnage boiler, combined redundant fan series and machine number.

It is used to transport various common gases and hard materials in industrial production, and is suitable for various harsh conditions such as high temperature, wear and corrosion.

It is capable of outputting a higher outlet pressure while providing more gas flow with lower noise. Stable operation at higher media temperatures.

The adjustment door can be used to flexibly adjust the pressure and flow of the fan during operation. It can also be equipped with a variable frequency motor to adjust the pressure and flow of the fan by changing the speed.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
5-11 12.4C 2900 9901873 27505750 34
5C 26202900 12652265 48409870 5.57.5
6C 26202850 18243148 837016760 1518.5
8C 18201980 17262991 1378027600 2230
9C 17401820 20003197 1878036140 37
12C 1450 36092471 3710068250 75
12.4C 1450 39032638 4094075330 90



Advantages and Features



1. For dust-containing gas, we can meet various working conditions from a small amount of dust to a very large dust content. After special treatment, the surface hardness of the blade can reach HRC60~70, which can extend the life of the impeller by more than 3 times.

2. The bearing housing is reserved for temperature and vibration sensor mounting positions, for convenient to install the fan operation monitoring device.

3. The weld and the main shaft of the impeller are ultrasonic flaw detection to ensure that there are no welding defects and material defects to ensure strength.

4. After the production is completed, all products are tested for running and vibration values for reliable operation.

5. There are a variety of accessories to choose from.



FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

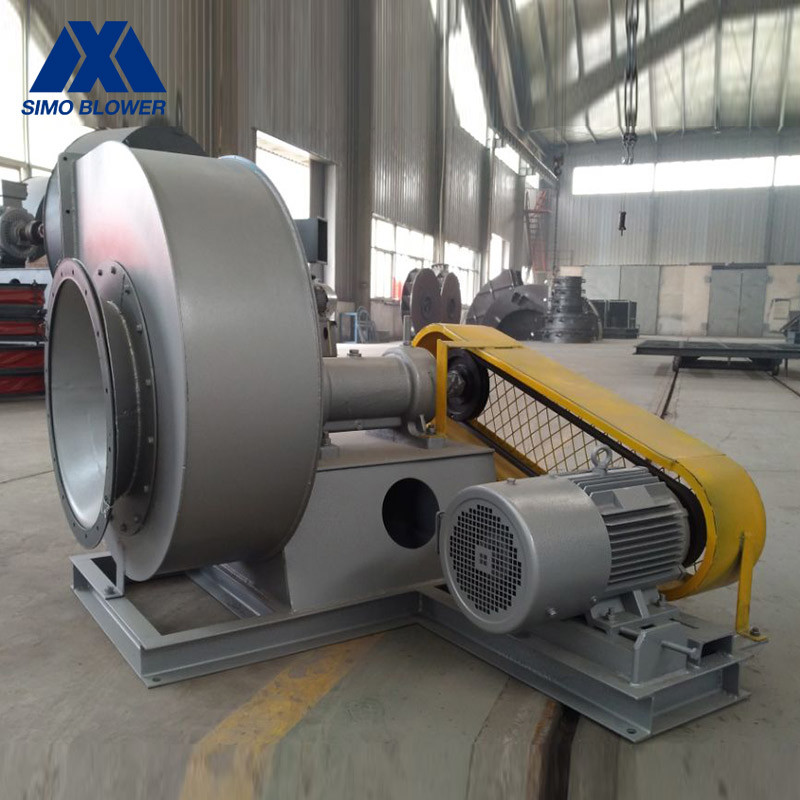

16Mn Single Inlet Large Capacity Centrifugal Flow Fan Blower 0
