415V Q345 Single Inlet Centrifugal Blower CFB Boiler Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 4-10
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Feature: High Performance
Noise: Optional Voltage: 380V/415V/440V/660V/6KV/10KV
Power Source: Three Phase AC Motor Warranty: 1 Year
High Light:

CFB Boiler Fan

,

Centrifugal Blower Boiler Fan

,

415V Boiler Fan

Q345 Single Inlet Energy Saving CFB Boiler Centrifugal Blower Fan

Introduction



G4-10 and Y4-10 series ventilation and induced draft fans are suitable for the ventilation and induced draft fan systems of 2~670T/h steam boilers in thermal power plants.

It can also be used for mine ventilation and general ventilation without other special requirements; Mainly used to meet the needs of large air flow applications, low noise and high efficiency.

It can work stably at a high medium temperature, and can output a large gas flow with low noise when the pressure requirement is met.

The fan blade placement angle is optimized, more wear-resistant and longer service life.

The air damper can be used to flexibly adjust the pressure and flow of the fan during operation. It is also possible to select a variable frequency motor, with adjust the pressure and flow of the fan by changing the speed.

For the material of impeller and main shaft, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature resistant high-strength alloy steel under different working conditions temperature and working speed, so that the impeller and main shaft still maintains a reliable strength at high temperature.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
4-10 8C 1450 2104~1400 16156~30993 18.55
9C 960 ~ 1450 775 ~ 2668 15229 ~ 44128 11 ~ 37
10C 730 ~ 1450 553 ~ 3301 15886 ~ 60533 7.5 ~ 55
11C 730 ~ 1450 669 ~ 4003 21144 ~ 80570 11 ~ 90
12C 730 ~ 1450 797 ~ 4777 25661 ~ 104600 15 ~ 132
14C 730 ~ 1450 1086 ~ 6541 43591 ~166100 37 ~ 315
16C 580 ~ 960 895 ~ 3709 51699 ~ 164150 45 ~ 185
18C 580 ~ 960 1133 ~ 4710 73610 ~ 233730 75 ~ 280
20C 580 ~ 960 1400 ~ 5837 100970 ~ 320610 110 ~ 520
22C 480 ~ 960 1216 ~ 6865 116000 ~ 434000 140 ~ 850
25C 480 ~ 730 1579 ~ 5138 171000 ~ 484000 165 ~ 700
28C 375 ~ 730 1205 ~ 6400 187000 ~ 680000 320 ~ 1250
29.5C 596 ~ 745 3236 ~ 7218 348000 ~ 810000 800 ~ 1600


FAQ



1,Q: What’s the MOQ of your company?

  A: The MOQ is 1set.

2,Q: How long is the delivery time?

A :        A:5-35 days.

3,Q : What’s your payment terms?

     A : T/T, L/C, or Negotiable.

4,Q: What’s your warranty?
     A: 1 year.
5,Q: Is your company factory or trade company?

     A: We have our own factory, our type is factory +trade.



Application



Centrifugal fan is applied in industrial boiler, (centrifugal fan can be applied in industrial boiler,) it also can be applied in industrial kilns, blast furnace, Industrial waste heat recovery device, Electrolytic aluminium production line air purification system and other industrial work environment.

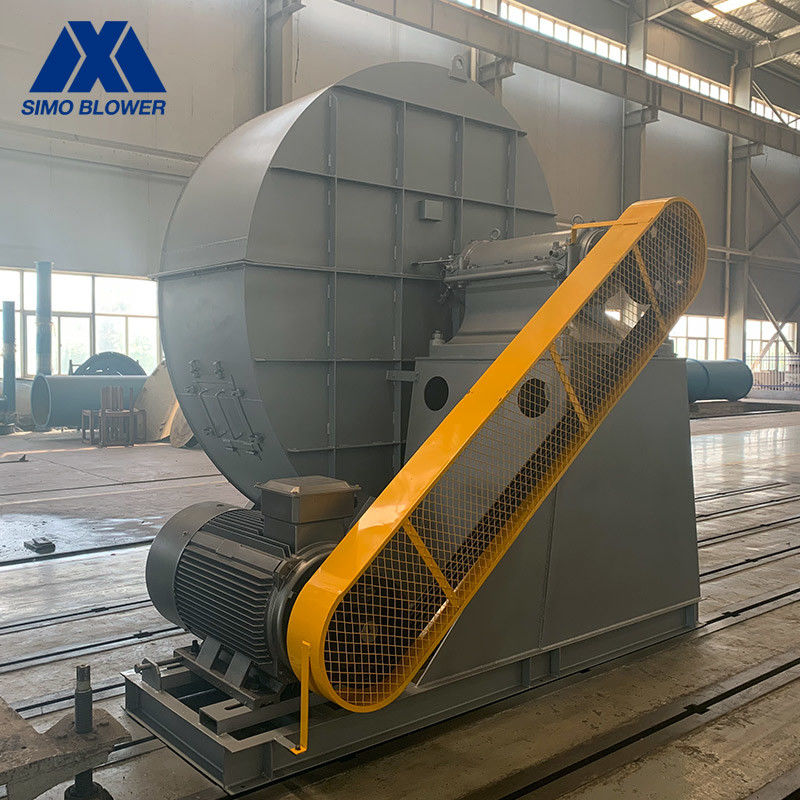

415V Q345 Single Inlet Centrifugal Blower CFB Boiler Fan 0

415V Q345 Single Inlet Centrifugal Blower CFB Boiler Fan 1
