Foundry Furnace Cement Industrial Exhaust Blower Materials Drying

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 6-06
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Electric Current Type: AC Motor: SIEMENS/ABB/By Your Demand
After-sales Service Provided: Field Installation, Commissioning And Training Main Shaft: High-strength Carbon Structural Steel
Power Source: Three Phase AC Motor System Type: Single Inlet, Overhang Type
High Light:

process fans in cement plant

,

centrifugal air blower

Materials Drying Large Capacity Foundry Furnace Cement Ventilate Blower Fan



Introduction



The 6-06 series dust exhaust centrifugal fan has the characteristics of low dust accumulation and wear resistant.

The Materials Drying Large Capacity Foundry Furnace Cement Ventilate Blower Fan is suitable for discharging gas containing dust, wood chips and finely divided fibers (If it contains hard particles, a dust removal device must be installed in front of the fan.), it can also be used as a general ventilator for ventilation.

Centrifugal fan is applied in industrial boiler, (centrifugal fan can be applied in industrial boiler,) it also can be applied in industrial kilns, blast furnace, Industrial waste heat recovery device, Electrolytic aluminium production line air purification system and other industrial work environment.

According to fan parameters you need, SIMO can make centrifugal blower fan technical solution for you. So please provide air capacity, pressure range, medium temperature, voltage and other requirements, more details will help us design suitable technical solution for you.



Technical data



PRODUCT PARAMETERS
Centrifugal fan
Application
Temperature Normal temperature air, Hot air
Air composition Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials
Centrifugal fan
Performance
Impeller diameter

400-2800

mm
Speed of mainshaft

≤3000

rpm
Pressure range

2284-14122

Pa
Flow range

1381-261494

m3/h
Centrifugal fan
Structure
Blade

Backward

Impeller support SWSI (Single Width, Single Inlet), Impeller overhung.
Drivetrain Coupling Can assign
Lubrication Oil bath lubrication
Bearing cooling Air cooling, Water cooling, Oil cooling
Centrifugal fan
System
configuration
Motor ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand…



Can assign

Impeller Q235, Q345, SS304, SS316, HG785, DB685...

Casing, Air inlet cone,

Air inlet damper

Q235, Q345, SS304, SS316, HG785, DB685...
Main shaft 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel...
Bearing FAG, SKF, NSK, ZWZ…
Centrifugal fan
Optional
components
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator,
Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc.


Advantages and Features



1.It can output higher outlet pressure and provide more gas flow at the same time, low noise.

2. The fan speed can be flexibly set by matching different belt pulley diameters to make the fan run at the highest efficiency point and reduce energy waste.

3. Motor slide guide can be provided for convenient belt tensioning to reduce energy loss caused by belt slack.

4. The bearing housing is reserved for the installation position of temperature and vibration sensors, which can facilitate the installation of fan operation monitoring device.

5. Use liquid lubricating oil. It is not necessary to open the bearing housing to replace and fill the lubricating oil. The bearing housing is provided with an observation window for easy observation of the quality and stock of the lubricating oil.

6. The bearing housing uses labyrinth mechanical seal, unique anti-leakage design inside, vent hole at the top, and sealing grease at the joint, completely eliminating the possibility of oil leakage in the bearing hosing.

7. After annealed treatment, the internal stress of the structure generated during welding can be completely eliminated to ensure that the impeller will not creepage and crack.

8. The impeller is subjected to a high standard of dynamic balancing adjusting to ensure stable operation of the fan.

9. After running test and vibration value detection, the operation is reliable.



FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

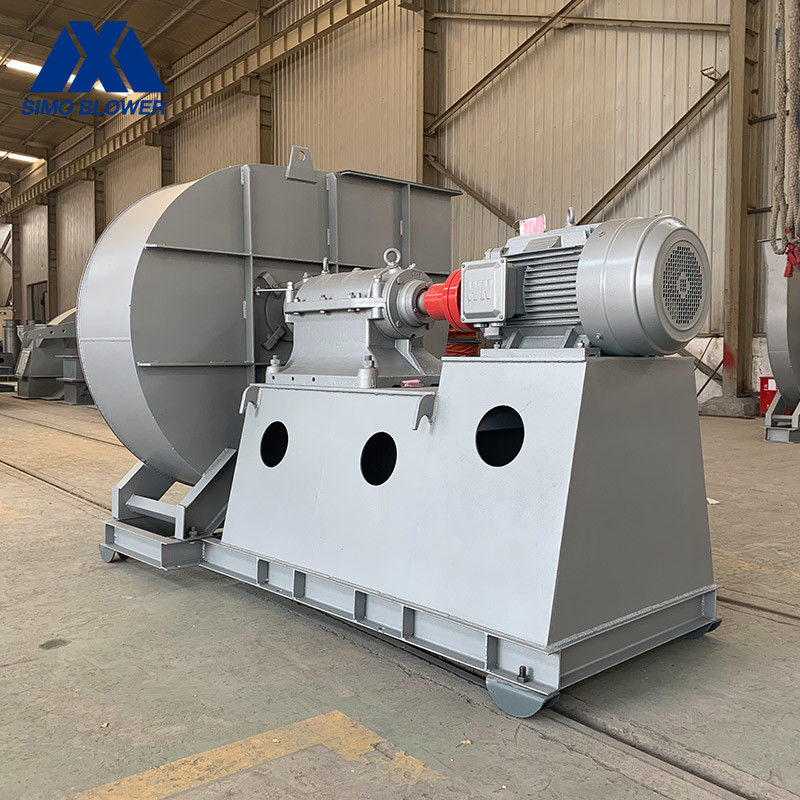

Foundry Furnace Cement Industrial Exhaust Blower Materials Drying 0

Foundry Furnace Cement Industrial Exhaust Blower Materials Drying 1
