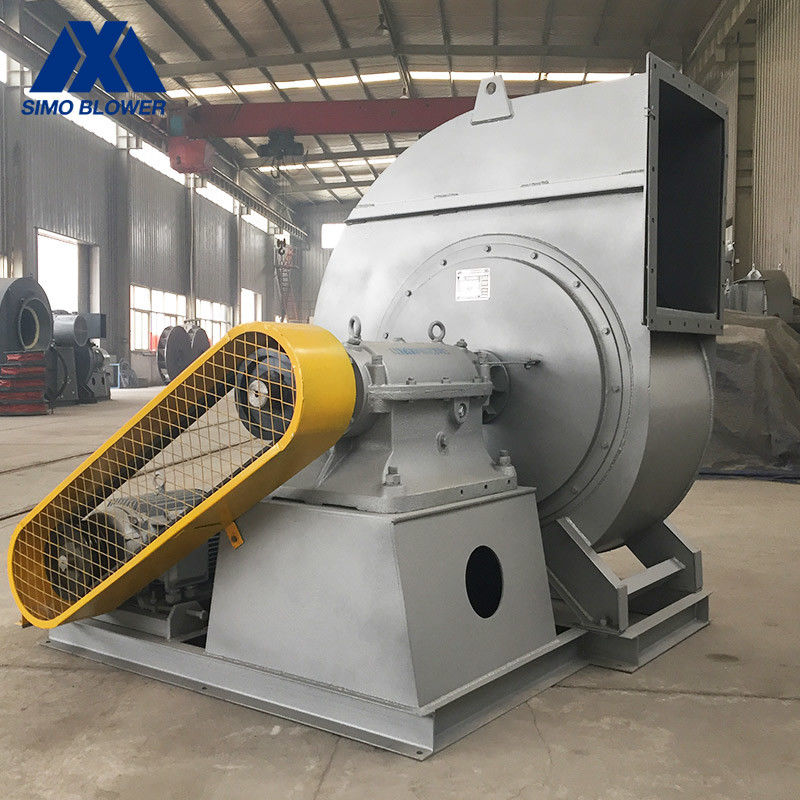

Corrosive Gas Delivery Electric Air Blower Industrial Ventilation Exhaust Fan
Introduction
The 4-09 series large-flow centrifugal ventilation fan is suitable for conveying clean air or light materials at normal temperature, most commonly used in industrial furnaces for air supply, light particle/powder/crush/fiber transportation, air drying/cooling of materials, ventilation and smoke exhaust, and other areas.
No viscous substances are allowed inside the gas, and the dust and hard particles contained in the gas are larger than 150 mg/m3, and the gas temperature does not exceed 80°C.
Corrosive Gas Delivery Electric Air Blower Industrial Ventilation Exhaust Fan is widely used in the cement industry, building materials industry, environmental protection industry, metallurgical industry, power industry projects such as large-scale dust collector, industrial boilers, ventilation systems, cooling.
Technical data
|
PRODUCT PARAMETERS
|
|||
|
Centrifugal Ventilation Fan Application
|
Temperature | Normal temperature air, Hot air | |
| Air composition | Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials | ||
|
Centrifugal Ventilation Fan Performance
|
Impeller diameter |
280-600 |
mm |
| Speed of mainshaft |
960~2900 |
rpm | |
| Pressure range |
198~3187 |
Pa | |
| Flow range |
844~15456 |
m3/h | |
|
Centrifugal Ventilation Fan Structure
|
Blade | Backward | |
| Impeller support | SWSI (Single Width, Single Inlet), Impeller overhung. | ||
| Drivetrain | V-Belt | Can assign | |
| Lubrication | Oil bath lubrication | ||
| Bearing cooling | Air cooling, Water cooling, Oil cooling | ||
|
Centrifugal Ventilation Fan System
configuration |
Motor | ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand… |
Can assign |
| Impeller | Q235, Q345, SS304, SS316, HG785, DB685... | ||
|
Casing, Air inlet cone, Air inlet damper |
Q235, Q345, SS304, SS316, HG785, DB685... | ||
| Main shaft | 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel... | ||
| Bearing | FAG, SKF, NSK, ZWZ… | ||
|
Centrifugal Ventilation Fan Optional
components |
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator, Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc |
||
Advantages and Features
1. When the pressure requirement is met, a large gas flow can be output, and the noise is very low.
2. The centrifugal ventilation fan speed can be flexibly set by matching different diameters of belt pulley to make the fan run at the highest efficiency point and reduce energy waste.
3. Motor sliding guides are provided for easy tensioning of the belt to reduce energy loss due to belt slack.
4. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.
5. In the case of a monolithic bracket, the installation is very simple and requires little support from a professional technician.
6. After the production is completed, all products are tested for running and vibration values for reliable operation.
