Centrifugal Ventilation Fans
>

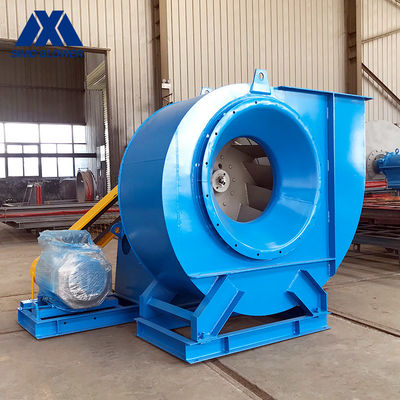

Coal Fired Boiler Ventilation Blowers Industrial High Heat Blower

Coal Fired Boiler Ventilation Blowers Industrial High Heat Blower

Product Details:
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 4-10
Detail Information
Place of Origin:
Henan China
Brand Name:
SIMO
Certification:
CE, ISO9001:2008,TUV
Model Number:
SIMO Blower 4-10
Type:
Centrifugal Fan
Feature:
High Performance
Drivetrain:
V-belt Driven
Material:
Carbon Steel/Alloy Steel/Stainless Steel
Delivery Time:
30 Days
Medium:
Clean Air/Dusty Air
High Light:

High Light

High Light:

industrial ventilation fan

,

forced draft fans

,

Coal Fired Boiler Ventilation Blowers

Trading Information
Minimum Order Quantity:
1 Set
Price:
300-5000 USD
Packaging Details:
Export Wooden Case Packing, Steel pallet Packing
Delivery Time:
15-35 Days
Payment Terms:
T/T, L/C, Payment Term Is Negotiable
Supply Ability:
500 Sets Per Month
Product Description

Coal-Fired Boiler Heat Dissipation Building Ventilation Centrifugal Fan



Introduction



The 4-10 series ventilation centrifugal and induced draft fans are suitable for the ventilation and induced draft fan systems of 2~670T/h steam boilers in thermal power plants.

Coal-Fired Boiler Heat Dissipation Building Ventilation Centrifugal Fan can also be used for mine ventilation and general ventilation without other special requirements; Mainly used to meet the needs of large air flow applications, low noise and high efficiency.

Coal-Fired Boiler Heat Dissipation Building Ventilation Centrifugal Fans can transport clean gas, dusty gas, flammable gas, corrosive gas, powder or granular materials at normal temperature or high temperature.

The weld of the impeller and the main shaft are ultrasonic flaw detection to ensure that there are no welding defects and material defects to ensure strength.The Ventilation Centrifugal Fan's impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.

There are a variety of accessories to choose from.



Technical data



PRODUCT PARAMETERS
Ventilation Centrifugal Fan Application
Temperature Normal temperature air, Hot air
Air composition Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials
Ventilation Centrifugal Fan Performance
Impeller diameter

800-2950

mm
Speed of mainshaft

375~1450

rpm
Pressure range

553~7218

Pa
Flow range

15229~810000

m3/h
Ventilation Centrifugal Fan Structure
Blade Backward
Impeller support SWSI (Single Width, Single Inlet), Impeller overhung.
Drivetrain V-Belt Can assign
Lubrication Oil bath lubrication
Bearing cooling Air cooling, Water cooling, Oil cooling
Ventilation Centrifugal Fan System
Configuration
Motor ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand…



Can assign

Impeller Q235, Q345, SS304, SS316, HG785, DB685...

Casing, Air inlet cone,

Air inlet damper

Q235, Q345, SS304, SS316, HG785, DB685...
Main shaft 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel...
Bearing FAG, SKF, NSK, ZWZ…
Ventilation Centrifugal Fan Optional
Components
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator,
Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc


Advantages and Features



1. Coal-Fired Boiler Heat Dissipation Building Ventilation Centrifugal Fan can work stably at a high medium temperature, and can output a large gas flow with low noise when the pressure requirement is met.

2. The Ventilation Centrifugal Fan blade placement angle is optimized, more wear-resistant and longer service life.

3. The air damper can be used to flexibly adjust the pressure and flow of the fan during operation. It is also possible to select a variable frequency motor, with adjust the pressure and flow of the fan by changing the speed.

4. For the material of impeller and main shaft, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature resistant high-strength alloy steel under different working conditions temperature and working speed, so that the impeller and main shaft still maintains a reliable strength at high temperature.

5. Fan systems with impeller diameters less than 1400 mm at normal temperature do not require additional bearing cooling devices, reducing users’ investment and maintenance.

6. The Ventilation Centrifugal Fan's impeller is annealed to eliminate the internal stress generated during welding, ensuring that the impeller does not undergo creep and cracks.
