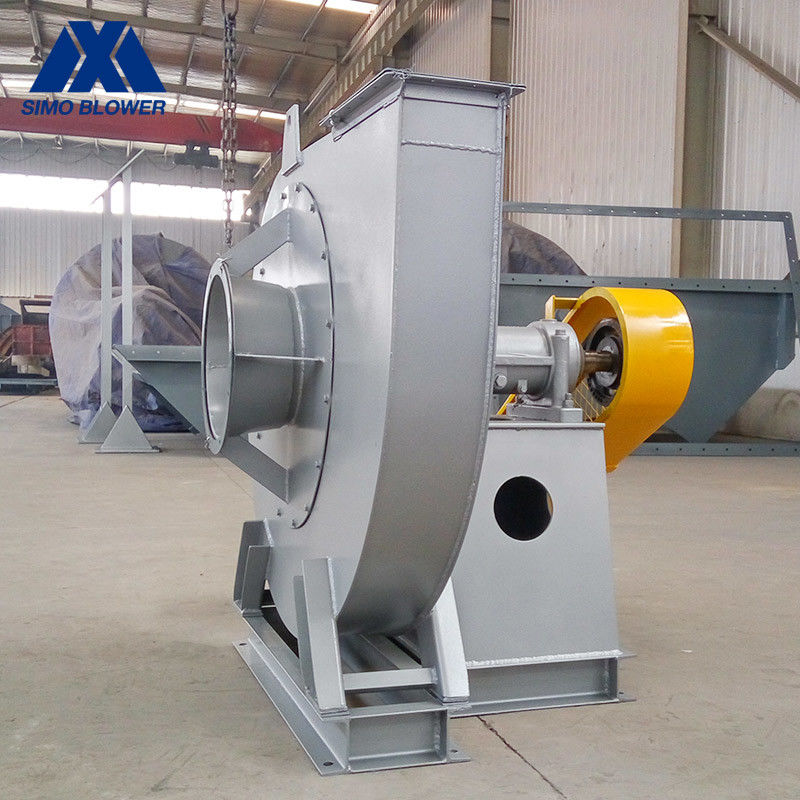

Backward Curved Stokerfeed Boiler Explosion Proof Centrifugal Blower Fan
Introduction
1. Backward Curved Stokerfeed Boiler Explosion Proof Centrifugal Blower Fan can output higher outlet pressure and provide more gas flow at the same time, low noise. Stable operation at higher media temperatures.
2. The variable inlet damper can be used to flexibly adjust the pressure and flow of the fan during operation. The variable frequency motor can also be selected to adjust the pressure and flow of the fan by changing the speed.
3. Bearing cooling method: according to gas temperature and operating environment conditions choose low-cost water-cooling method or oil-cooling method with good heat dissipation performance. For extremely high temperature operating conditions, can also be installed with an electronic cooler, absolute protection of the reliable operation of the fan system.
4. The material of impeller and main shaft, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature &high-strength alloy steel for different working conditions temperature and working speed, so that the impeller and main shaft at high temperature still maintain reliable strength.
5. The bearing housing is reserved for the installation position of temperature and vibration sensors, which can facilitate the installation of fan operation monitoring device.
6. Ultrasonic flaw detection on the welding seam and main spindle of the impeller to ensure that there are no welding defects or material defects and ensure the strength.
7. After running test and vibration value detection, the operation is reliable.
Technical data
series | model |
Centrifugal Blower Fan Rotation Speed |
Centrifugal Blower Fan Total Pressure |
Centrifugal Blower Fan Air Capacity |
Power (kW) |
---|---|---|---|---|---|
6-04 Centrifugal Blower Fan |
12C | 1450 | 3581~5356 | 14800~35200 | 55~75 |
12.5C | 1450 | 3885~5808 | 16800~39800 | 55~75 | |
13C | 1450 | 4208~6288 | 18900~44800 | 75~90 | |
13.5C | 1450 | 4532~6779 | 21100~50200 | 90~110 | |
14C | 1450 | 4874~7289 | 23600~55900 | 110~132 | |
14.5C | 1450 | 5229~7819 | 26200~62200 | 132~160 | |
15C | 1450 | 5600~8365 | 29000~68800 | 132~220 | |
15.5C | 1450 | 5972~8934 | 32000~75900 | 160~220 | |
16C | 1450 | 6365~9573 | 35200~83500 | 220~280 | |
16.5C | 1450 | 6777~10121 | 38600~91600 | 250~315 | |
17C | 1450 | 7189~10739 | 42200~100000 | 280~355 | |
17.5C | 1450 | 7620~11386 | 46000~108000 | 315~400 | |
18C | 1450 | 8061~12043 | 50100~119000 | 355~500 | |
18.5C | 1450 | 8512~12720 | 54400~129000 | 450~560 | |
19C | 1450 | 8983~13416 | 58900~140000 | 500~630 | |
19.5C | 1450 | 9464~14132 | 63600~151000 | 560~710 | |
20C | 1450 | 10307~14867 | 68700~163000 | 630~800 |
Application
Explosion Proof Centrifugal Blower Fan is widely used in the cement industry, building materials industry, environmental protection industry, metallurgical industry, power industry projects such as large-scale dust collector, industrial boilers, ventilation systems, cooling.
FAQ
1. What parameters need to be provided when you design the industrial centrifugal fans?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
