| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 9-10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 300-5000 USD |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Application: | Industrial Ventilation | Feature: | High Performance |
|---|---|---|---|
| Warranty: | 1 Year | After-sales Service Provided: | Field Installation, Commissioning And Training |
| Power Source: | Three Phase AC Motor | Medium: | Clean Air/Dusty Air |
| High Light: | explosion proof blower fan,large centrifugal blower |
||

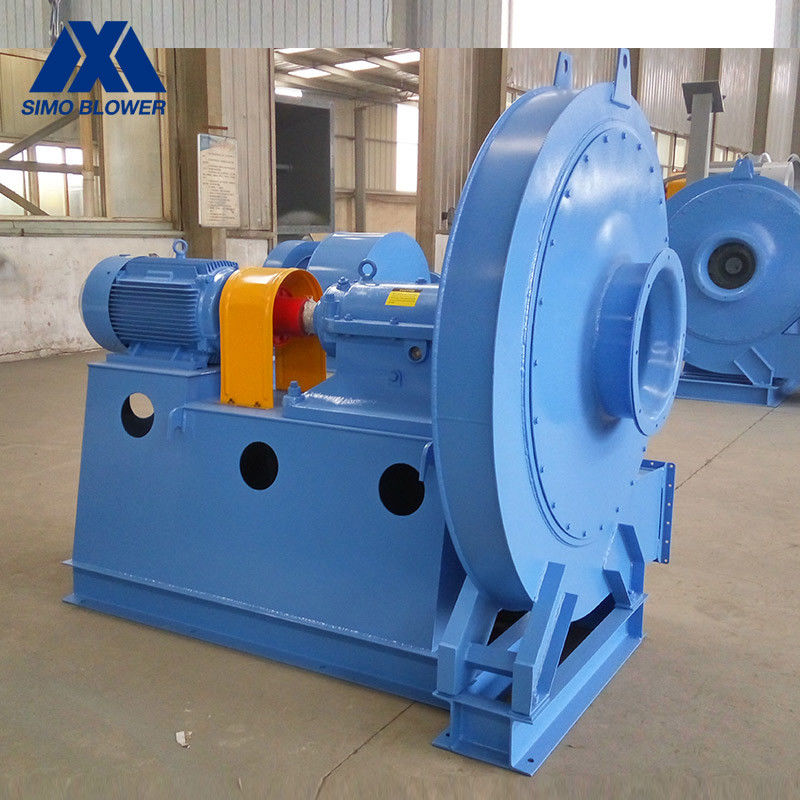

Coupling Driving Nickel Iron Kiln Explosion Proof Centrifugal Blower Fan
Introduction
1. Coupling Driving Nickel Iron Kiln Explosion Proof Centrifugal Blower Fan can output higher gas pressure, and can provide more gas flow at the same time, low noise.
2. In the case of using the common base, the installation is very simple and basically does not require the support of professional technicians.
3. The motor shaft is elastically connected with the drive shaft. It is not necessary to tighten the belt or replace the belt frequently, and the maintenance workload is small.
4. The fan system running at normal temperature with an impeller diameter of less than 1400 mm does not require additional configuration of bearing cooling device, which reduces the user's investment and maintenance workload.
5. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.
6. The fan is made of high quality carbon steel, and can also use stainless steel or other metal materials according to customer requirements.
7. Running test and vibration value detection after the production is completed, the fan operation is reliable.
Technical data
| series | model |
Centrifugal Blower Rotation Speed |
Centrifugal Blower Total Pressure |
Centrifugal Blower Air Capacity |
Power (kW) |
|---|---|---|---|---|---|
|
9-10 Centrifugal Blower |
8D | 1450～2900 | 3231～15034 | 3297～14287 | 7.5～110 |
| 9D | 1450 | 4101～4597 | 4695～10717 | 15～22 | |
| 10D | 1450 | 4958～5840 | 6440～15455 | 30～37 | |
| 11.2D | 960～1450 | 2705～7364 | 5990～21713 | 15～75 | |
| 12.5D | 960～1450 | 3975～9229 | 8327～30186 | 22～110 | |
| 14D | 960～1450 | 4249～11668 | 11699～42409 | 37～220 | |
| 16D | 960～1450 | 5575～15425 | 17463～63305 | 75～315 |
Application
Explosion Proof Centrifugal Blower Fan is widely used in the cement industry, building materials industry, environmental protection industry, metallurgical industry, power industry projects such as large-scale dust collector, industrial boilers, ventilation systems, cooling.
FAQ
1. What parameters need to be provided when you design the industrial centrifugal fans?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
