SA Stainless Steel Blower Explosion Proof Industrial Ventilation

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 6-06
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Feature: High Performance
Main Shaft: High-strength Carbon Structural Steel Motor: SIEMENS/ABB/By Your Demand
System Type: Single Inlet, Overhang Type Delivery Time: 30 Days
High Light:

explosion proof blower fan

,

backward curved centrifugal blower

Stainless Steel Industrial Boiler SA Explosion Proof Centrifugal Blower Fan



Introduction



1. According to customer performance requirements customized design, and optimized by CFD technology, the energy consumption is lower than similar models.

2. For the material of impeller and main spindle, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature high-strength alloy steel for different working conditions temperature and working speed, so that the impeller and main spindle at high temperature still maintain reliable strength.

3. For dusty gas, we can meet all kinds of working conditions from small amount of dust to large amount of dust. After special treatment, the hardness of blade surface can reach HRC60~70, which can extend the life of the impeller by more than 3 times.

4. The moderate bonding between the components is tight, and the sealing performance is good, ensuring that the output pressure will not be reduced.

5. After annealed treatment, the internal stress of the structure generated during welding can be completely eliminated to ensure that the impeller will not creepage and crack.



Technical data



series model

Blower Fan

Rotation Speed
(r/min)

Blower Fan

Total Pressure
(Pa)

Blower Fan

Air Capacity
(m³/h)

Power
(kW)

6-06

Blower Fan

8C 1450 18592745 1100026400 15 ~ 22
9C 1450 23533474 1570037500 30 ~ 45
10C 1450 29054289 2150051500 45 ~ 75
11C 960 ~ 1450 15415190 2270068500 22 ~ 110
12C 960 ~ 1450 18346176 2460089000 37 ~ 160
13C 960 ~ 1450 21527248 31200113000 55 ~ 250
14C 960 ~ 1450 24968406 39000141000 75 ~ 400
15C 730 ~ 1450 16579650 36600172000 45 ~ 500
16C 730 ~ 1450 188510980 44300211000 75 ~ 710
17C 730 ~ 960 21285433 53200168000 90 ~ 280
18C 730 ~ 960 23866091 63100199000 110 ~ 355
19C 730 ~ 960 26586787 74200234000 160 ~ 500
20C 730 ~ 960 29467520 86700273000 200 ~ 630
21C 580 ~ 960 20508290 79500316000 200 ~ 800
22C 580 ~ 960 22509099 92200363000 220 ~ 1000
23.5C 580 ~ 960 256710380 112000443000 220 ~ 1400
25C 580 ~ 730 67946464 134000406000 355 ~ 800
26.5C 480 ~ 730 22367633 132000483000 220 ~ 1120
28C 480 ~ 730 24968522 156000569000 315 ~ 1400
29.5C 480 ~ 730 2771 ~ 9460 183000667000 400 ~ 2000


Application



Centrifugal fan is widely used in the cement industry, building materials industry, environmental protection industry, metallurgical industry, power industry projects such as large-scale dust collector, industrial boilers, ventilation systems, cooling.



FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

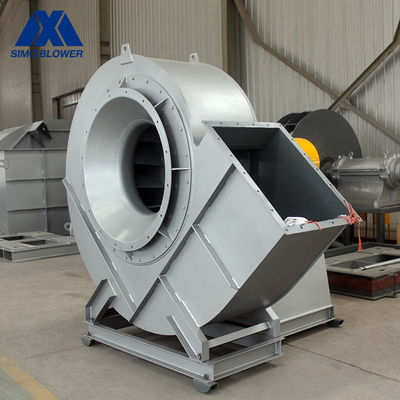

SA Stainless Steel Blower Explosion Proof Industrial Ventilation 0
