High Temperature Centrifugal Fan
>
Stainless Steel High Temperature Centrifugal Fan Energy Efficiency

Stainless Steel High Temperature Centrifugal Fan Energy Efficiency

Product Details:
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 9-08
Detail Information
Place of Origin:
Henan China
Brand Name:
SIMO
Certification:
CE, ISO9001:2008,TUV
Model Number:
SIMO Blower 9-08
Voltage:
380V/415V/440V/660V/6KV/10KV
Mounting:
Free Standing
Warranty:
1 Year
After-sales Service Provided:
Field Installation, Commissioning And Training
Color:
Customer's Requirement
Power Source:
Three Phase AC Motor
High Light:

High Light

High Light:

high temperature blower fan

,

high temperature fans and blowers

Trading Information
Minimum Order Quantity:
1 Set
Price:
300-5000 USD
Packaging Details:
Export Wooden Case Packing, Steel pallet Packing
Delivery Time:
15-35 Days
Payment Terms:
T/T, L/C, Payment Term Is Negotiable
Supply Ability:
500 Sets Per Month
Product Description

High Temperature Stainless Steel Energy Efficiency Centrifugal Fan



Introduction



The 9-08 series high pressure centrifugal fan is generally used for forging furnace and high pressure forced ventilation, and can be widely used to transport materials, transport air and non-corrosive, non-self-igniting, non-viscous substances gas.

The temperature of the medium generally does not exceed 50 ° C (maximum not more than 80 ° C). The dust and hard particles contained in the medium are not more than 150 mg/m3.

For flammable and explosive gas transportation, the impeller can be processed with aluminum alloy to prevent sparks during operation.

The high temperature centrifugal fan with explosion-proof motor, and its performance parameters are the same as those ordinary motors.

The centrifugal fan has high efficiency, low noise, flat performance curve and wide area of high efficiency.

The centrifugal fan is made of high quality carbon steel, and can also use stainless steel or other metal materials according to customer requirements.Running test and vibration value detection after the production is completed, the fan operation is reliable.



Technical data



PRODUCT PARAMETERS
Centrifugal Fan Application
Temperature Normal temperature air, Hot air
Air composition Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials
Centrifugal Fan Performance
Impeller diameter 400~630 mm
Speed of mainshaft

2900

rpm
Pressure range

3852~9698

Pa
Flow range

2198~13525

m3/h
Centrifugal Fan Structure
Blade Forward
Impeller support SWSI (Single Width, Single Inlet), Impeller overhung.
Drivetrain

Direct

Can assign
Lubrication Oil bath lubrication
Bearing cooling Air cooling, Water cooling, Oil cooling
Centrifugal Fan System
Configuration
Motor ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand…



Can assign

Impeller Q235, Q345, SS304, SS316, HG785, DB685...

Casing, Air inlet cone,

Air inlet damper

Q235, Q345, SS304, SS316, HG785, DB685...
Main shaft 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel...
Bearing FAG, SKF, NSK, ZWZ…
Centrifugal Fan Optional
components
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator,
Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc


Advantages and Features



1.The High Temperature Stainless Steel Energy Efficiency Centrifugal Fan can output higher gas pressure, and can provide more gas flow at the same time, low noise.

2. In the case of using the common base, the installation is very simple and basically does not require the support of professional technicians.

3. The motor shaft is elastically connected with the drive shaft. It is not necessary to tighten the belt or replace the belt frequently, and the maintenance workload is small.

4. The centrifugal fan system running at normal temperature with an impeller diameter of less than 1400 mm does not require additional configuration of bearing cooling device, which reduces the user's investment and maintenance workload.

5. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.

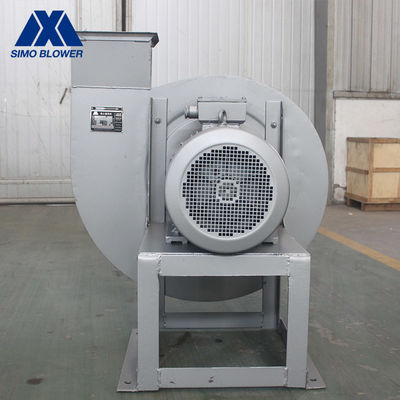

Stainless Steel High Temperature Centrifugal Fan Energy Efficiency 0
