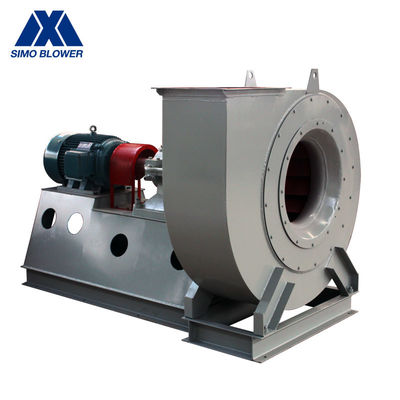

High Temperature Backward Wear Resistant Centrifugal Blower Fan
Introduction
The 9-11 series high temperature centrifugal blower fan has a large flow rate and moderate pressure.
This centrifugal blower fan is designed for the purpose of using industrial boiler to work in the high-efficiency area and achieve the energy-saving target.
The centrifugal blower fan is suitable for equipped with economizer (heater) and smoke and dust removal device.
It is a high-efficiency energy-saving product jointly designed by the national fan industry and organized by the national wind power industry and the Ministry of Machinery Industry.
It has the characteristics of high efficiency, low noise, flat performance curve and wide efficient area.
Industrial boilers of 5 ~ 35 tons/hour can be used, those with similar intake conditions and suitable performance can be used, but the maximum temperature shall not more than250°C.
Before the induced draft fan, dust removal device with a dust removal efficiency of no less than 85% must be installed to reduce the dust content of the smoke entering the fan.
High Temperature Backward Wear Resistant Centrifugal Blower Fan can not only reduce the pollution of the smoke on the environment, but also reduce the wear of the smoke on the fan, which is conducive to prolonging the life of the fan.
Technical data
PRODUCT PARAMETERS
|
|||
Centrifugal Fan Application
|
Temperature | Normal temperature air, Hot air | |
Air composition | Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials | ||
Centrifugal Fan Performance
|
Impeller diameter | 900~1600 | mm |
Speed of mainshaft |
730~1450 |
rpm | |
Pressure range |
1412~4835 |
Pa | |
Flow range |
13189~139712 |
m3/h | |
Centrifugal Fan Structure
|
Blade | Backward | |
Impeller support | SWSI (Single Width, Single Inlet), Impeller overhung. | ||
Drivetrain |
Coupling |
Can assign | |
Lubrication | Oil bath lubrication | ||
Bearing cooling | Air cooling, Water cooling, Oil cooling | ||
Centrifugal Fan System
Configuration |
Motor | ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand… |
Can assign |
Impeller | Q235, Q345, SS304, SS316, HG785, DB685... | ||
Casing, Air inlet cone, Air inlet damper |
Q235, Q345, SS304, SS316, HG785, DB685... | ||
Main shaft | 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel... | ||
Bearing | FAG, SKF, NSK, ZWZ… | ||
Centrifugal Fan Optional
Components |
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator, Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc |
Advantages and Features
1.The centrifugal blower fan can output higher gas pressure, and can provide more gas flow at the same time, low noise.
2. In the case of using the common base, the installation is very simple and basically does not require the support of professional technicians.
3. The motor shaft is elastically connected with the drive shaft. It is not necessary to tighten the belt or replace the belt frequently, and the maintenance workload is small.
4. The high temperature centrifugal blower fan system running at normal temperature with an impeller diameter of less than 1400 mm does not require additional configuration of bearing cooling device, which reduces the user's investment and maintenance workload.
5. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.
6.The centrifugal fan is made of high quality carbon steel, and can also use stainless steel or other metal materials according to customer requirements.
7. Running test and vibration value detection after the production is completed, the fan operation is reliable.
